RoamJS Query Builder

Query Builder can be used to create queries via a Query Block, Query Pages, or the Query Drawer.

These queries are far more powerful than vanilla Roam queries, as it taps into Roam's underlying query language surfaced through an approachable UI.

Query Blocks

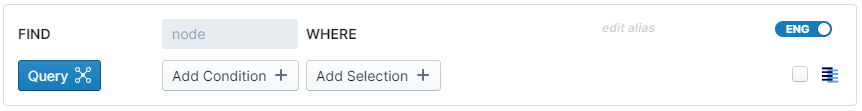

The above UI is available as a block component. This allows you to create several on a page, wherever on the page you want.

To create one, simply add {{query block}} to any block on the page or use the Create Query Block from the Roam Command Palette.

Query Pages

With Query Pages, you designate certain pages in your Roam graph as "views" into your data.

On the Roam Depot Settings page for Query Builder, you should see a setting called Query Pages. You could use this to denote which page titles in your Roam Graph will be used to create query pages. Use the * as a wildcard.

By default, Query Pages is set to be titled with queries/*. This means any page in your graph prefixed with queries/ can be used to save a query. You can denote multiple page title formats.

Example: [[queries/Demo]]

Query Drawer

The above UI is also available as a left hand drawer, accessible from the command palette. This allows you to execute a query no matter where in your graph you are.

To open, enter Open Query Drawer from the Roam Command Palette.

Usage

Create a Query Block, navigate to a Query Page, or open the Query Drawer to begin to building your query. You can use this editor to create and save a query.

There are two important parts to a query: Conditions and Selections.

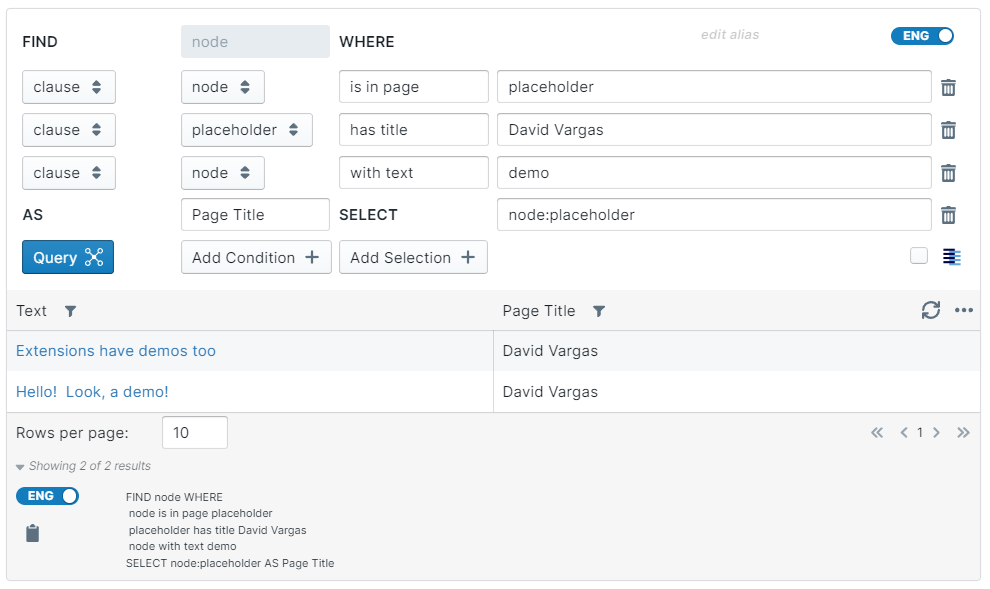

After specifying conditions and selections, hit the Query button to return results in your graph. These results will always include a text field which will link to the relevant block or page reference. Hitting Query also effectively "Saves" the query to the graph.

The results returned will be organized in a table with sortable and filterable columns. Click on the columns to sort the data and use the filter icon to narrow down the table to your desired results:

Conditions

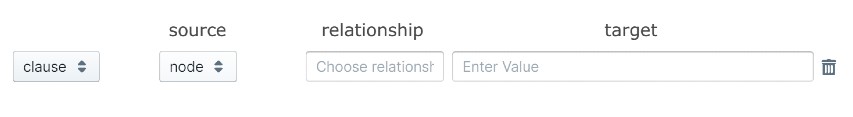

Conditions specify which blocks you want to return. They determine the rows of the table. The anatomy of a Condition is a triple: source, relationship, & target:

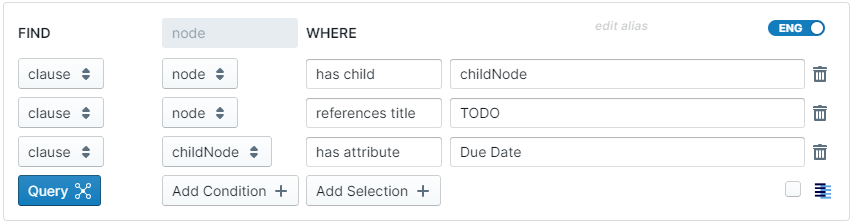

You can use a combination of multiple conditions to select the data you want.

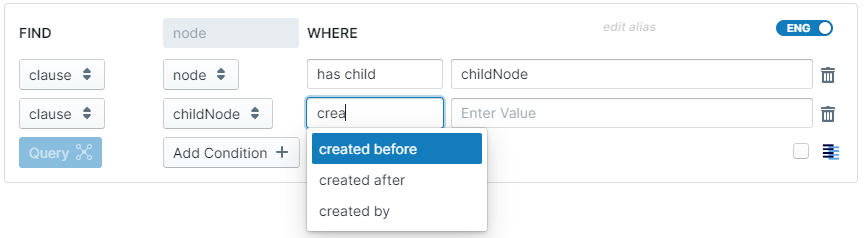

relationships will autocomplete as you type:

Supported Relationships

Relationship Description Example
created after The source block or page was created after the naturally specified target. Link
created before The source block or page was created before the naturally specified target. Link
created by The source block or page was created by the user with a display name of target. Link
edited after The source block or page was edited after the naturally specified target. Link
edited before The source block or page was edited before the naturally specified target. Link
edited by The source block or page was last edited by the user with a display name of target. Link
has ancestor The source block has the target block or page as an ancestor up the outliner tree. Link
has attribute The source block or page has an attribute with value target. Link
has child The source block or page has the target block as a child. Link
has descendant The source block or page has the target block as a descendant somewhere down the outliner tree. Link
has title The source page has the exact text target as a title. Supports date NLP. The target also supports Regular Expressions. Link
is in page The source block is in the target page. Link
is in page with title The source block is in a page with title target. Supports date NLP. The target also supports Regular Expressions. Link
is referenced by The source block or page is referenced by the target block or page. Link
references The source block or page references the target block or page. Link
references title The source block or page references a page with target as the title. Supports date NLP. The target also supports Regular Expressions. Link
titled after The source page is a DNP that is after the naturally specified target. Link
titled before The source page is a DNP that is before the naturally specified target. Link
with text The source block or page has the exact text target somewhere in its block text or page title. Link
with text in title The source page has the exact text target somewhere in its page title. Link

Target Options

Some relationships have a target field that supports the following options:

  • {date} - matches any Daily Note Page
  • {date:today} - matches the current date
  • {current} - matches the page currently open in the main window
  • {this page} - matches the page in which the query is run
  • {current user} - matches the current user

Logical Operators (OR and NOT OR Branches)

Query Builder supports advanced logical operators that allow you to create complex queries with multiple branches. These operators enable you to build sophisticated queries that can handle multiple scenarios or exclude specific conditions.

OR Operator: Returns results that match any of the specified branches. Think of it as "this OR that OR the other thing."

NOT OR Operator: Returns results that do not match any of the specified branches. Think of it as "not this AND not that AND not the other thing."

Creating OR/NOT OR Branches

  1. Add a new condition to your query
  2. Change the condition type from the dropdown menu (default is "clause")
  3. Select "or" or "not or" from the options
  4. Click "Edit" to manage the branches

Managing Branches

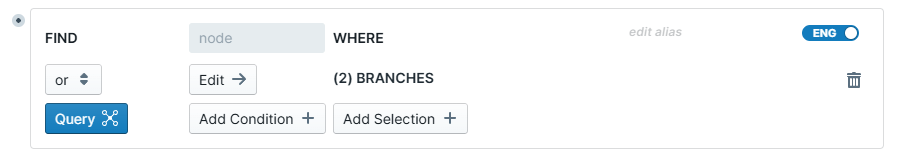

When you create an OR or NOT OR condition, you'll see a tabbed interface that allows you to manage multiple branches:

  • Each tab represents a branch (numbered 1, 2, 3, etc.)
  • Each branch contains AND conditions - all conditions within a branch must be true
  • Branches are combined with OR logic - any branch being true will return results
  • Use "Add Branch" to create additional branches
  • Use "Add Condition" to add more conditions within the current branch

Navigation Between Branches

  • Click on tabs to switch between branches
  • Use left/right arrow keys to navigate between branches
  • Use "Add Branch" button to create new branches
  • Use "Back" button to return to the main query view

Practical Examples

Example 1: OR Query - Finding Tasks by Multiple Statuses

Goal: Find all tasks that are either "In Progress" OR "Pending Review"

  1. Create a new condition
  2. Change type to "or"
  3. Click "Edit"
  4. In Branch 1: Add condition node has attribute In Progress
  5. Click "Add Branch"
  6. In Branch 2: Add condition node has attribute Pending Review

Returns all blocks that have either "In Progress" or "Pending Review" as attributes.

Example 2: NOT OR Query - Excluding Multiple Categories

Goal: Find all notes that are NOT about "Work" AND NOT about "Personal"

  1. Create a new condition
  2. Change type to "not or"
  3. Click "Edit"
  4. In Branch 1: Add condition node has attribute Work
  5. Click "Add Branch"
  6. In Branch 2: Add condition node has attribute Personal

Returns all blocks that do NOT have "Work" as an attribute AND do NOT have "Personal" as an attribute.

Selections

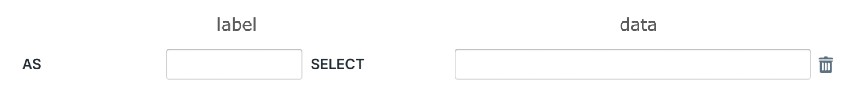

Selections specify what data from the blocks that match your conditions get returned. They determine the columns of the table. By default, the block text or page title is always returned and hyperlinked. Every selection is made up of two parts: the label and the data:

The label, which gets specified after AS, denotes the name of the column that gets used. The data, which gets specified after Select, denotes what kind of data to return.

Supported Data Types

Metadata

Data Description Example
Author The user who created the block or page Link
Created Date The date the block or page was created Link
Created Time Same as above, but in hh:mm format Link
Edited Date The date the block or page was edited Link
Edited Time Same as above, but in hh:mm format Link
Last Edited By The user who created the block or page Link

Additional Data Types

Data Description Example
{attribute} Returns the value of an {attribute} associated with the queried results. Link
node:{node} Returns any intermediary node you defined in one of the conditions. Link
node:{node}:{data} Specify one of the metadata {data} options or an {attribute} to return for an intermediary node. Link
node:{node}:/regular_expression/ Returns a match according to a regular expression between /'s. Link
node Use the label to edit the column header of the first column Link
add({label1}, {label2}) Add the values of two columns. Supports adding values to dates. Link
subtract({label1}, {label2}) Subtract the values betweenn two columns. Supports adding values to dates. Link

Manipulating Results

After you fire a query, the results will output in a table view. There are multiple ways to post process these results after they output to the screen.

Sort

Clicking on the table header for a given column will trigger an alphabetical sort. Clicking again will toggle descending order. Clicking once more will toggle the sort off. You could have multiple columns selected for sorting:

Filter

Each column is also filterable. The filter works just like the page and reference filters in native Roam, where you could pick values to include and remove:

Search

Enable search by clicking on the Menu button, then Search.

This will allow you to search across all columns, case-insensitive.

Query.Builder.Search.-.Short.Demo.mp4

View Type

Each column also has a view type. Choosing a view type will change how the cell is displayed in the table.

The supported view types are:

View Type Description
plain Outputted as plain text
link Outputted as text that links to the block or page
embed Embeds the contents of the block or page in the cell.

All changes to the outputted results are saved automatically.

Layouts

By default, the query builder will use the Table layout. You can switch to a different layout by hitting the more menu on the top right of the results and clicking on the Layout option.

The following layouts are available:

Layout Description Example
Line Displays your data as a line chart. Link
Bar Displays your data as a bar chart. Link
Timeline Displays your data as an interactive timeline view. Link
Kanban Displays your data as a Kanban board. Link

Exporting

Next to the save button is a button that will allow you to export your results. There are currently two formats available to export to:

  • CSV - All the columns in the table will become columns in the CSV
  • Markdown - The columns will become frontmatter data and the children of the block or page will become markdown content.

Styling

Every Query Block or Query Page is rooted with a div that has an id of roamjs-query-page-${uid} where uid is the block reference of the query block or the page reference of the page. You could use this id to style individual queries with affecting other ones.

SmartBlocks Integration

This extension comes with its own SmartBlocks command! The <%QUERYBUILDER%> command will run an existing Query Block or Query Page instance in your graph and return the results as separate blocks. The command takes in multiple arguments:

  1. Query reference - the block reference or alias of query
  2. Output format - the format to output each result in.

And two optional arguments (the order of these arguments does not matter):

  • Limit - the number of results returned.
  • Input Variables - variables to pass into the query

Alias

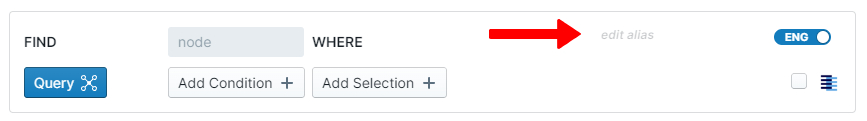

You can set the alias of a Query Block in the top right corner of the UI. See example 2 below.

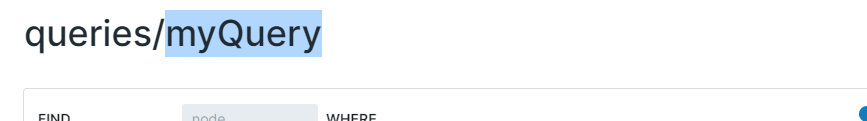

The end of the title of a Query Page works as well. See example 3 below.

Output Format

Regular Output Format

  • Placeholders - you can use SmartBlock Formatting placeholders, like {text} to insert the value from the result in.
  • Selections - there's a placeholder available for each Selection label that you have defined in the query.
  • Selection uid - to get the uid of a selection, append -uid to the end of the selection label, eg {someSelection-uid}.
  • SmartBlock Commands - any SmartBlock Command will be applied to the resulting output. See example 3 below.

Flexible Output Format

The flexible output format allows you to define a multi-block output format.

To use the flexible output format, you pass in the block reference that contains the output format. Each result from the <%QUERYBUILDER%> command will be output with this format.

The same placeholders defined above for the regular output format are also available in the flexible output format, but you use <%GET:placeholder%> to get the value of a placeholder instead of {placeholder}.

Example

<%QUERYBUILDER:myQuery,((ITe51brrn))%>

Where ((ITe51brrn)) looks like this:

- Title:: <%GET:text%>
  - Description:: <%GET:description%>

Input Variables

Input Variables are a way to pass in values into your query, allowing for dynamic adjustments based on things like user input. This feature is particularly useful in scenarios where you want to reuse a single query template with different parameters.

For example, in a task management setup, you might have a query that retrieves tasks for a specific client. Instead of creating multiple query instances for each client, you can create one query and use an input variable to specify the client name dynamically.

To pass a value to the query builder instance, use this format: variable=value. See example 4 below.

Then in the query builder instance, you can reference it by entering :in variable in supported conditions.

Here is an example of this in action:

Direct Video Link

Examples

  1. <%QUERYBUILDER:6-qLCJsSb,{text}%>
  2. <%QUERYBUILDER:myQuery,The Result is {text} - {description}%>
  3. <%QUERYBUILDER:queries/myQueryBlock,Random Block from {text}: <%RANDOMBLOCKFROM:{uid}%>%>
  4. <SET:clientName,<%INPUT:Which client?,Alice,Bob,Eve%>%><%QUERYBUILDER:tasks,(({uid})),client=clientName%>

Developer API

For developers of other extensions who want to use the queries defined by users, we expose the following API, available on the global window.roamjs.extension.queryBuilder object:

  • listActiveQueries - () => { uid: string }[] Returns an array of blocks or pages where the user has a query defined from query builder.
  • runQuery - (uid: string) => Promise<Result[]> Runs the query defined at the input uid and returns a promise that resolves to the array of results from the user's graphs. Results have the following schema:
    • text - string The page title or block text of the primary node involved in the result.
    • uid - string The reference of the primary node involved in the result.
    • ${string}-uid - string If the users define selections that return intermediary nodes, the reference of those nodes will always end in -uid and will always be of type string.
    • {string} - string | number | Date All other fields returned in the result can be any of the primitive value types.
  • isDiscourseNode - (uid: string) => boolean Returns whether the input uid is a discourse node.

Examples

See more query examples here: Link

General Demo

Demo showing Query Block, Query Pages, Query Drawer, Conditions, Selections and a few example queries.

Direct Video Link

Conversation with Conor White-Sullivan

About Roam Depot, extensions, and a Query Builder demo. Demo starts around 13 minutes.

(in the demo you'll see the block being used, but that can be interchanged with node)

View on Grain
