A simple shell script that uses buildah to create customized OCI/docker images and podman to deploy rootless containers designed to automate compilation/building of github projects, applications and kernels, including any other conainerized task or service. Pre-defined environment variables, various command options, native integration of all containers with apt-cacher-ng, live log monitoring with neovim and the use of tmux to consolidate container access, ensures maximum flexibility and efficiency during container use.

Roadmap

• Sneak Peek
• Features
• Install Dependencies
• How it works
  • Basics
  • Tmux Shortcuts
  • Tmux Sessions
  • Exit Status
  • Build Folders
• Getting Started
  • First Steps
  • Command Options
  • Parameter Description
  • Command Structure
  • Folder Structure
  • Volume Mounts
  • Default Behavior
  • Environment Variables
  • Systemd Integration
  • Apt-Cacher-Ng

Preview

• Sneak Peek

Example #1

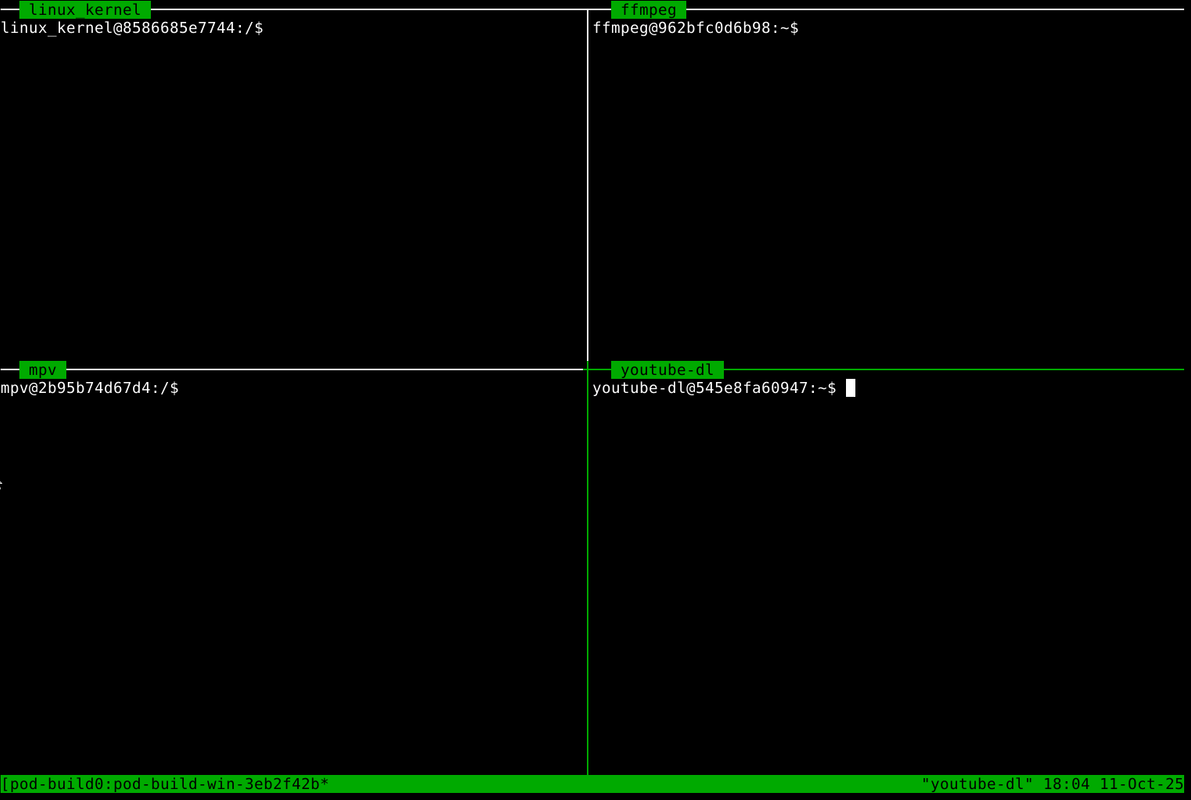

• pod-buildah runs the same custom command in multiple containers or a unique command in each container separately. The command output is displayed in a tmux session/pane dedicated to every individual container.



Example #2

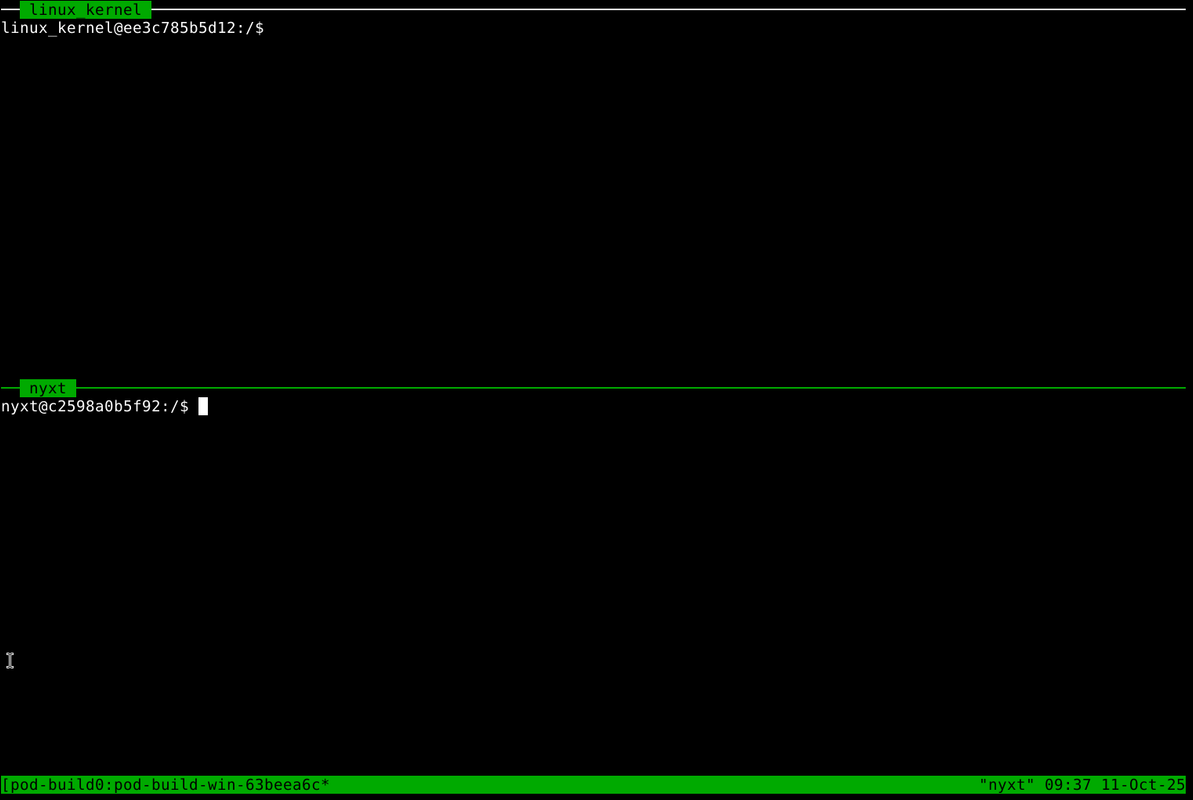

• pod-buildah deploys 2 rootless debian bookworm containers which build the nyxt browser and linux kernel. Here is a quick overview of the tmux session layout, logging with neovim and separate container shells.



Example #3

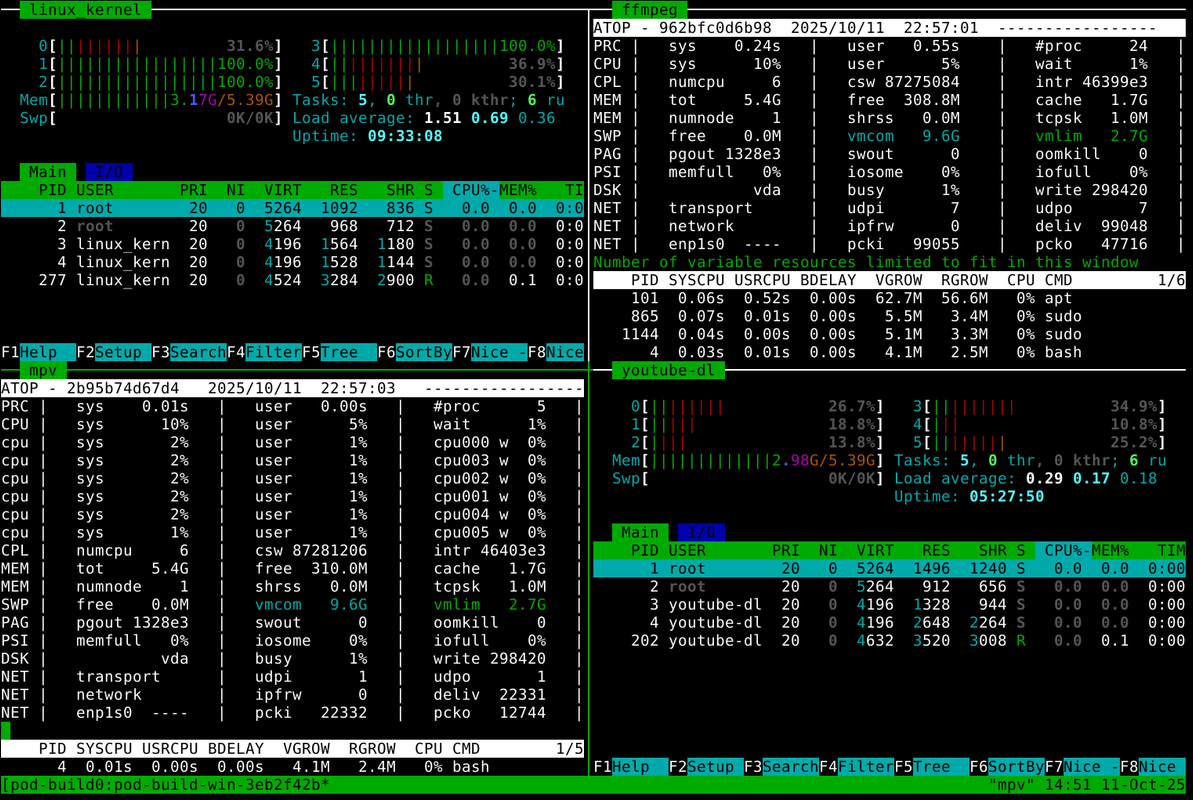

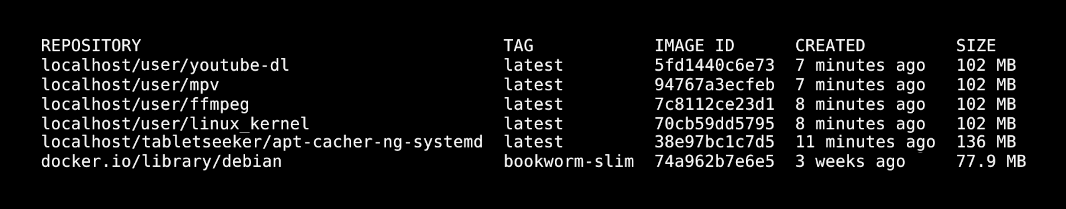

• pod-buildah automatically creates 4 customized debian bookworm images and based on them deploys 4 rootless podman containers which build multiple tags of ffmpeg, youtube-dl, linux_kernel and mpv.

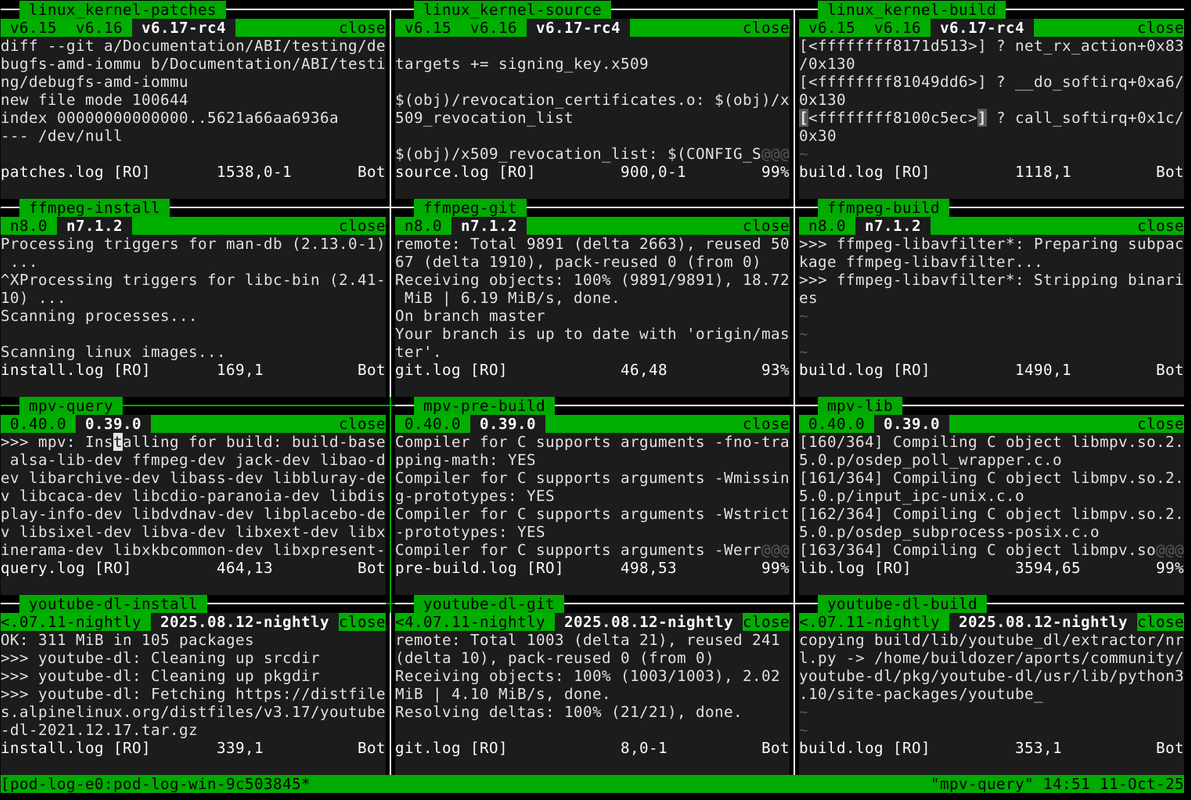

• Logs are synchronously generated and tailed with neovim in a tmux session. (full screen toggle per pane possible)



• While the main container process (in this case a build script) is running in the background, pod-buildah runs a custom command in a separate tmux session. By default this command launches a shell /bin/bash inside each container to allow direct access. (container label is also the username)



• However, any command can be automatically executed on startup, like for example monitoring tools.



• Every container natively uses apt-cacher-ng (also containerized) which is attached to a third and final tmux session. It caches packages during the image creation, container setup and execution of the container process.



🔼 Back to Top

Highlights

• Features

• Anything about a container's image, behavior or task can be changed, automated and logged with simple arguments.
• Change container OS (source image)
• Change container process
• Change mount locations
• Update/reset container image
• Log monitoring/tailing with neovim
• Full integration with tmux
• Customize image setup
• Native use of apt-cacher-ng
• Custom packages
• Custom command (separate from main process)
• Custom post command (after conainer exit)
• Graphical exit status indicator
• Written in 100% Shell

🔼 Back to Top

Installation

• Install dependencies
• Clone repository

1. Dependencies

    sudo apt-get install -y podman buildah tmux neovim


2. Clone repo

   git clone --depth=1 --branch=master https://github.com/tabletseeker/pod-buildah

🔼 Back to Top

How it works

Mechanics

• Basic Functionality

• Only two things are required to run pod-buildah containers.

1. Target Name
   • Location: pod-buildah/help-steps/targets
   • Determines the name of the image, container, container labels, tmux titles, UID inside container etc.
   • It is possible to add a prefix via option -x|--prefix
2. Main Script
   • Location: pod-buildah/build-data/<target_name>/pod_start
   • Every container executes a main script on startup called pod_start.
   • This script controls the container's behavior while making use of the provided ENV variables and options provided by pod-buildah.
   • If this script does not exist, a customizable template is automatically copied from pod-buildah/help-steps/script_template
   • When a custom command is chosen with option -c|--command, the main script is not executed and the container process defaults to /bin/bash.

🔼 Back to Top

Session Management

• Tmux Shortcuts

• Navigate panes: Alt + Arrow_Key
• Toggle Full Screen: Alt + d
• Choose Session: Alt + s
• Navigate Neovim Tabs: g t

• Tmux Sessions

• Three separate tmux sessions, each with 1 window and unique identifiers are launched by pod-buildah.

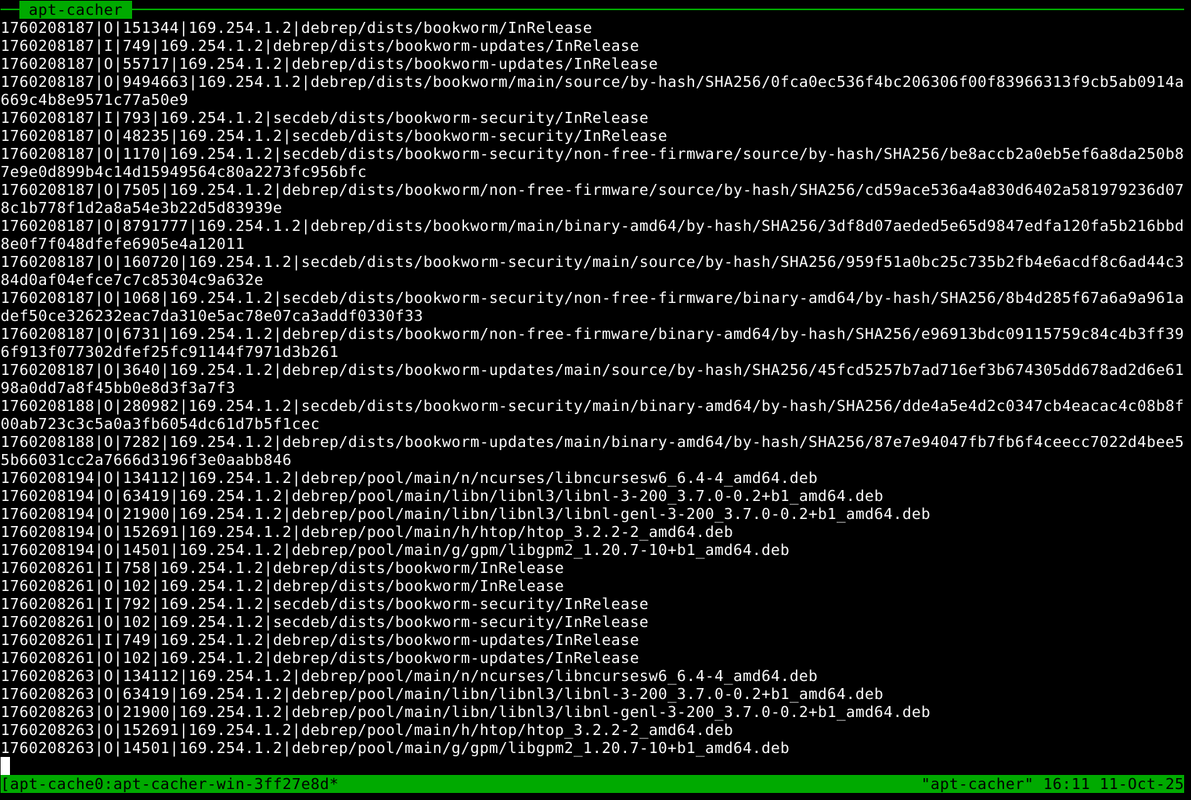

  • apt-cacher: tails the apt-cacher container's /var/log/apt-cacher-ng

  • pod-buildah: launches a shell /bin/bash inside every running container

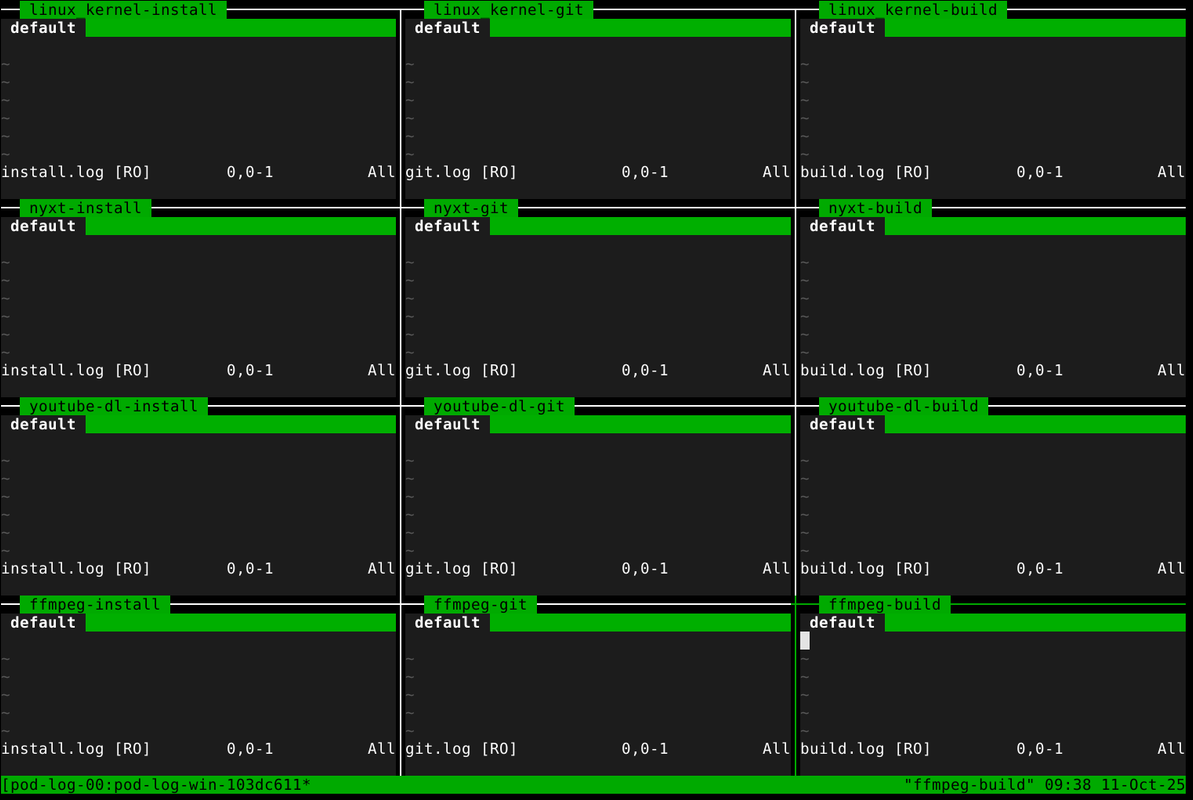

  • pod-log: tails each of the specified logs (default 3) with neovim

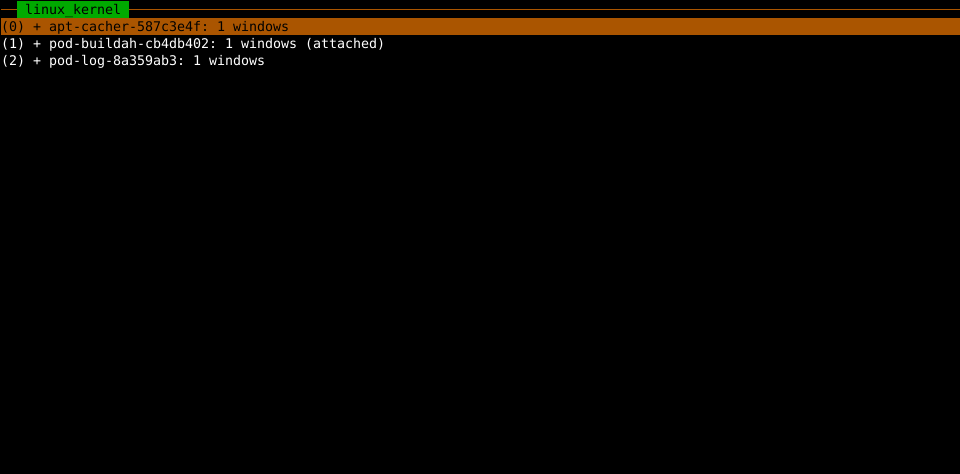

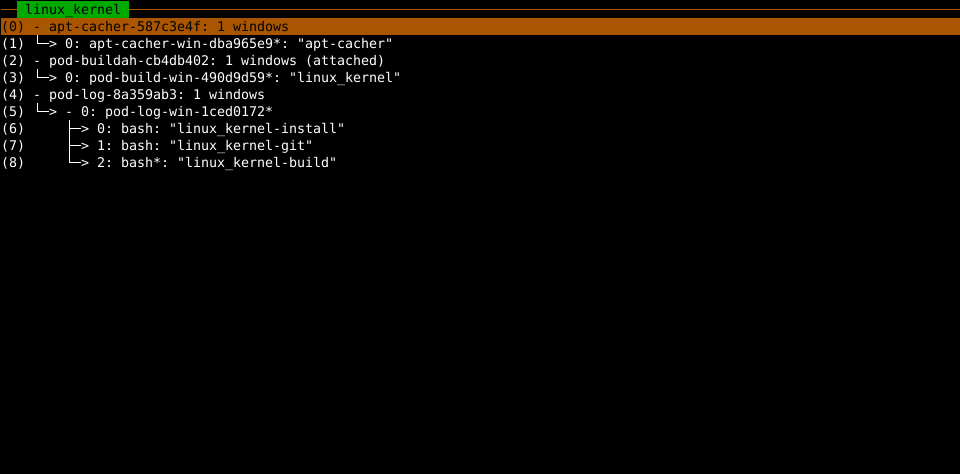

  • Alt + s opens the choose-session display



• Each started container automatically produces new panes in each window.

  • pod-buildah: 1 new pane

  • pod-log: 3 new panes



• A pod-buildah pane (if no custom command is used) allows the user to simultaneously interact with the container inside a shell while the main container process is running in the background.

  • The container's label also poses as the username.

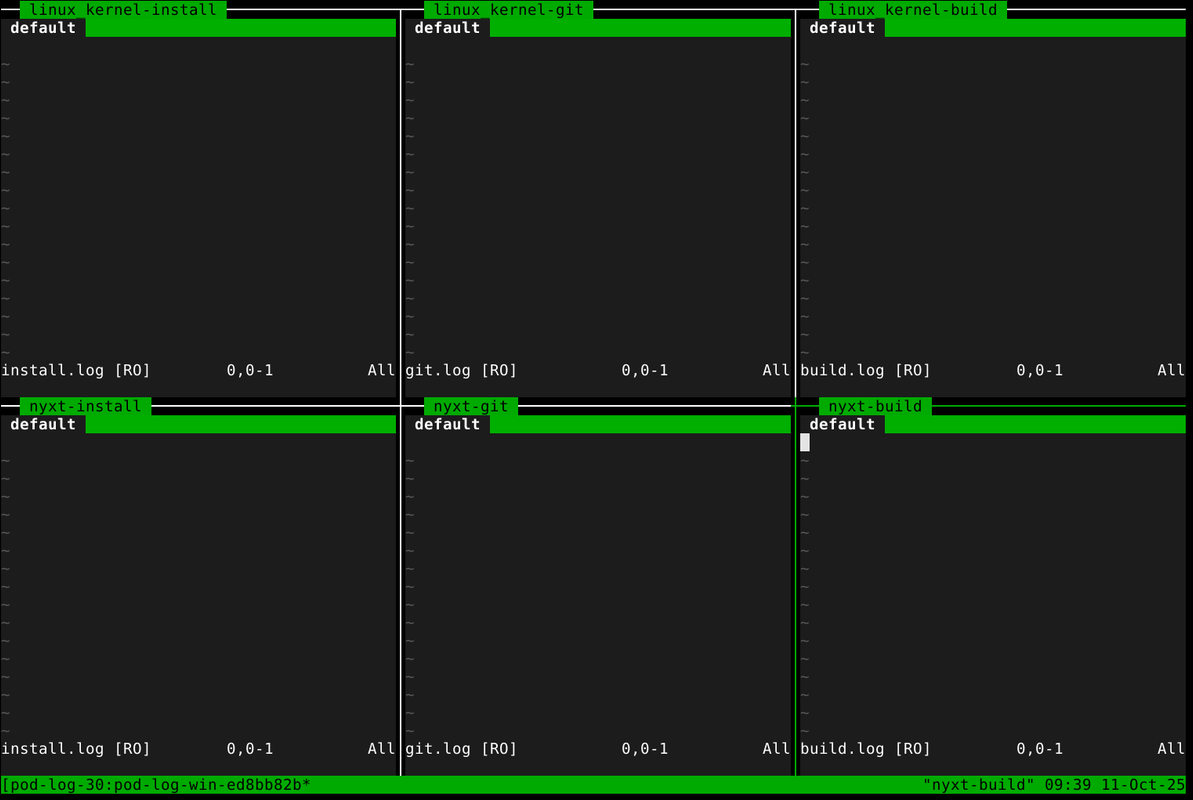

• Each pod-buildah pane is coupled with 3 pod-log panes in a separate pod-log session which display the logs as the container process is running.

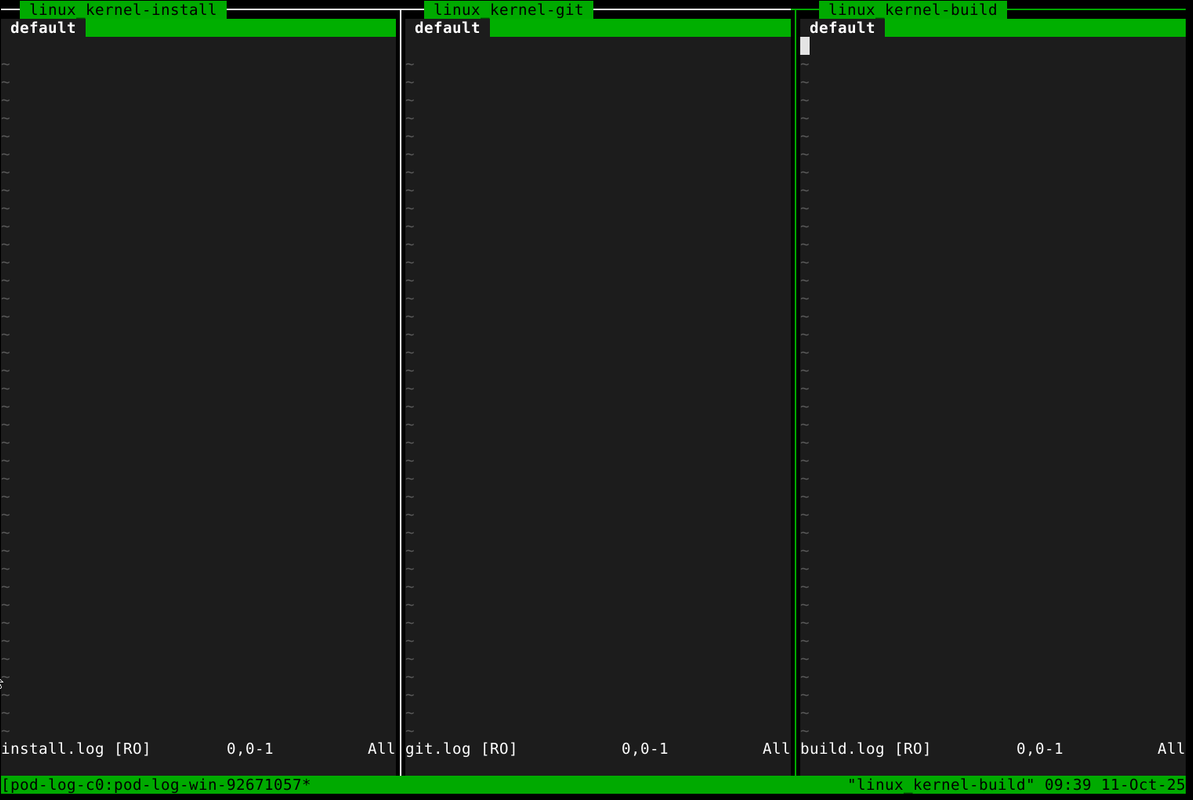

  • If only one or the native branch is chosen, the default logs and pane titles are used.

  • The default log titles are install.log,git.log and build.log

  • The tmux log title is composed of the target name and the log name.

  • Custom log names can be chosen with option -ln|l--log-names.



• If multiple containers are launched, each window is automatically split.

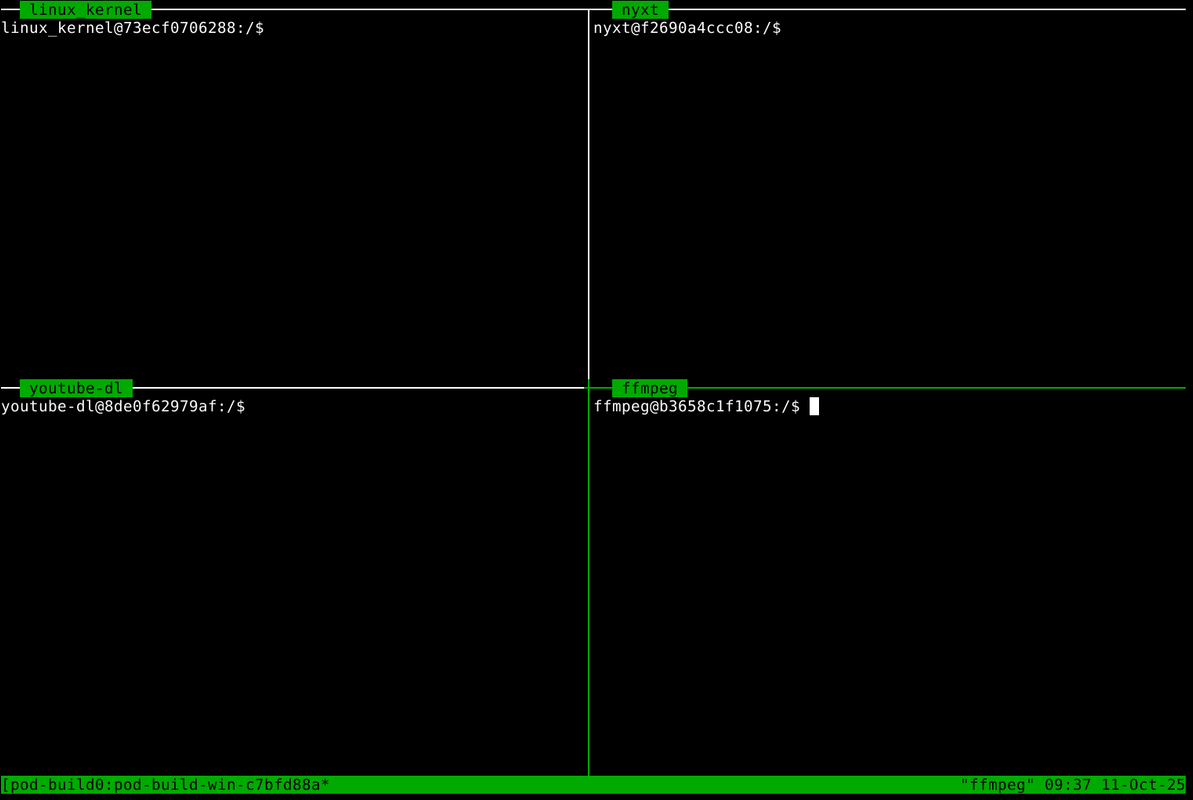

  • pod-buildah window layout: tiled

  • pod-log window layout: 3 x 3



• A total of 4 pod-buildah and 9 pod-log panes are allowed per window.

  • After that limit has been reached a new window is created in each session.

  • You can navigate between panes via Alt + Arrow_Key

  • Alt + d toggles fullscreen per pane



🔼 Back to Top

Command Exit

• Exit Status

• Once a custom command that is executed inside a container with option -c|--command exits or the container itself stops because execution of its main process has finished, the exit status will be indicated graphically by a colored text box in the target container's tmux pane. Since pod-buildah always runs a custom command for each target via tmux, by default /bin/bash, this exit message will always appear in any given pod-buildah tmux pane. When it is visible, a custom post command can be run inside that same tmux pane by pressing Enter. This post command can be controlled with option -tc|--tmux-command. By default, it launches neovim.

  See 🔼 Parameter Description

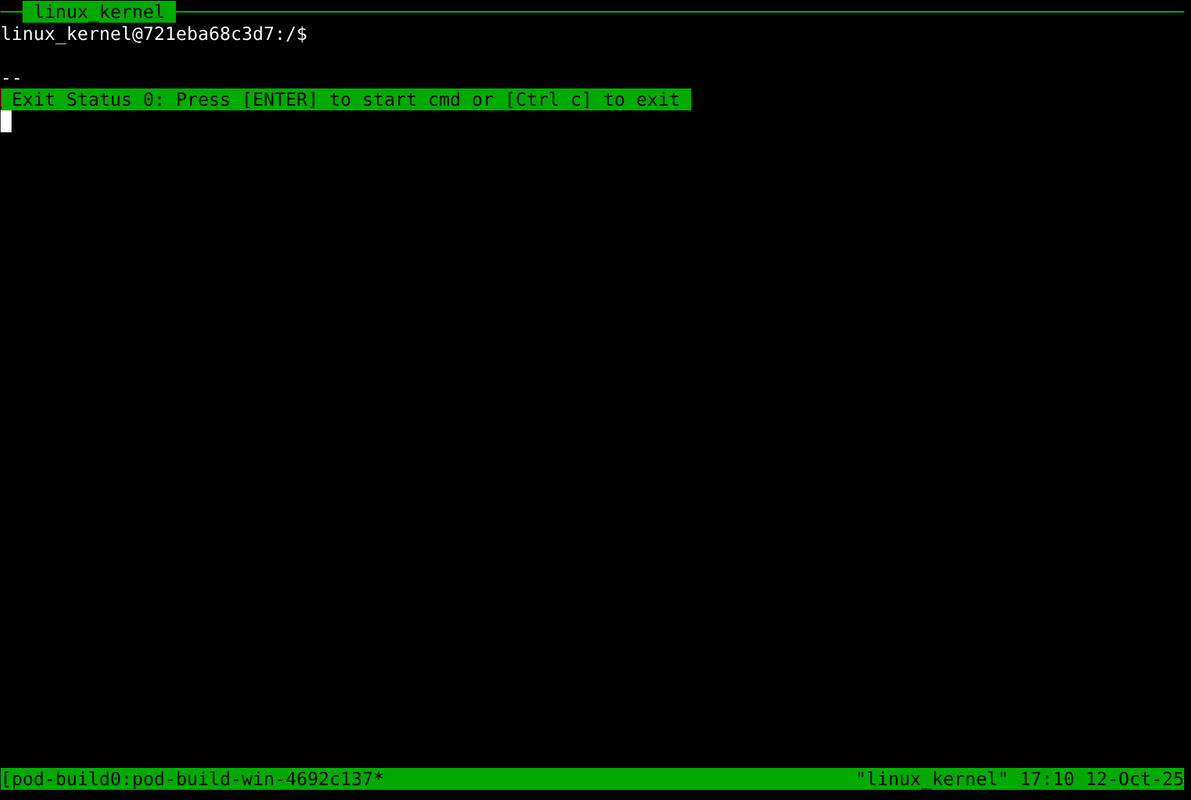

• Exit Code 0 is marked with a green, blinking bar.

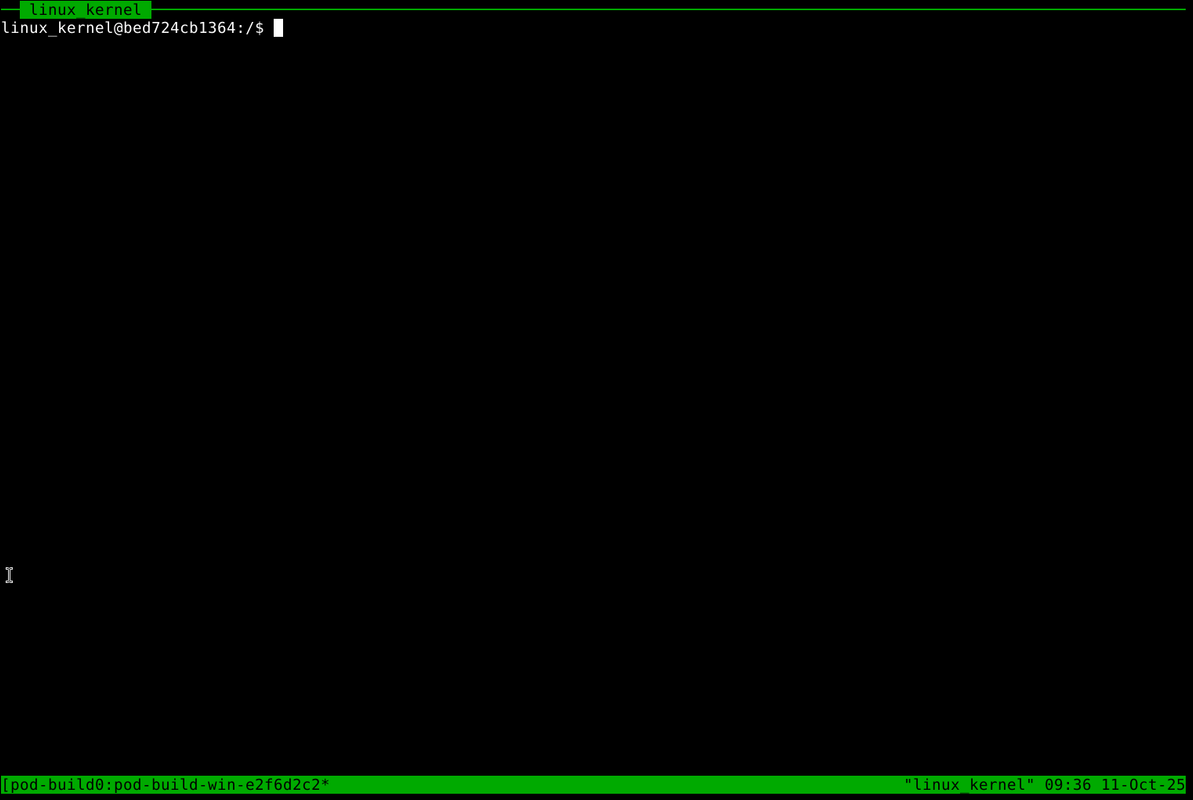

  • Running exit 0 in container linux_kernel

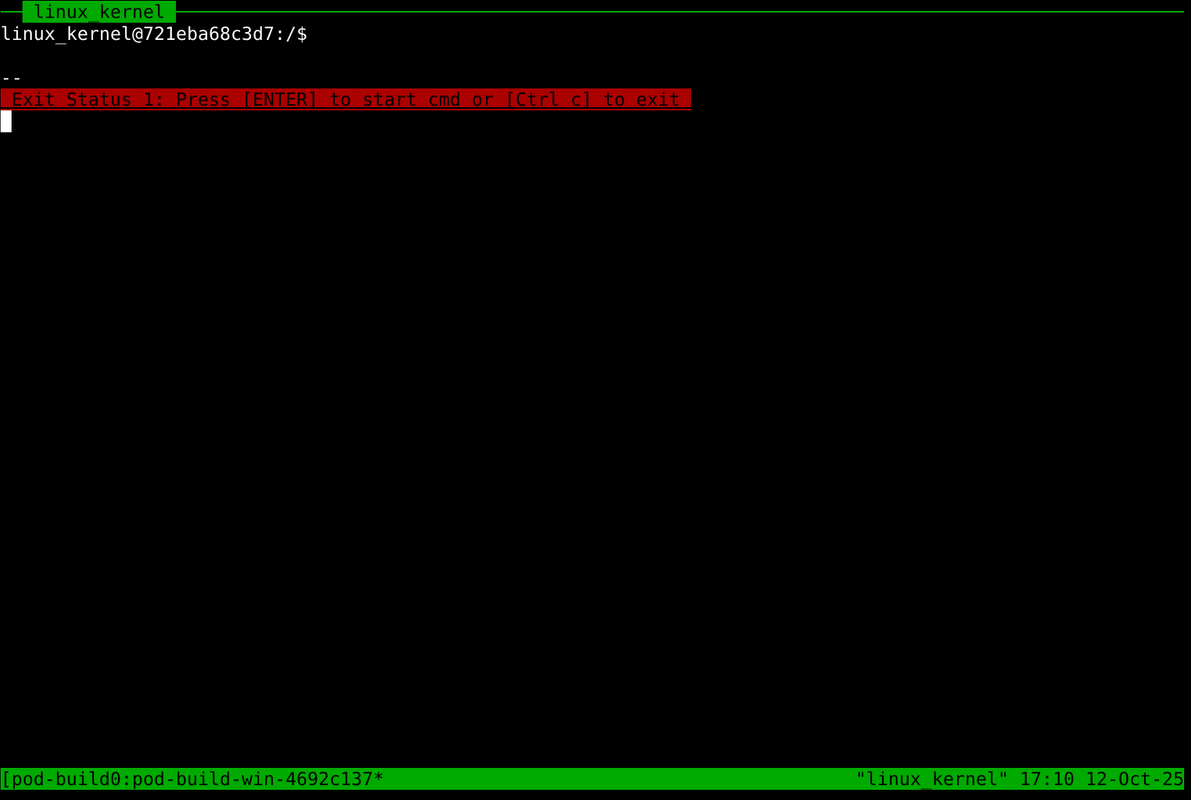

• Exit Code 1 is marked with a red, static bar.

  • Runningexit 1 in container linux_kernel

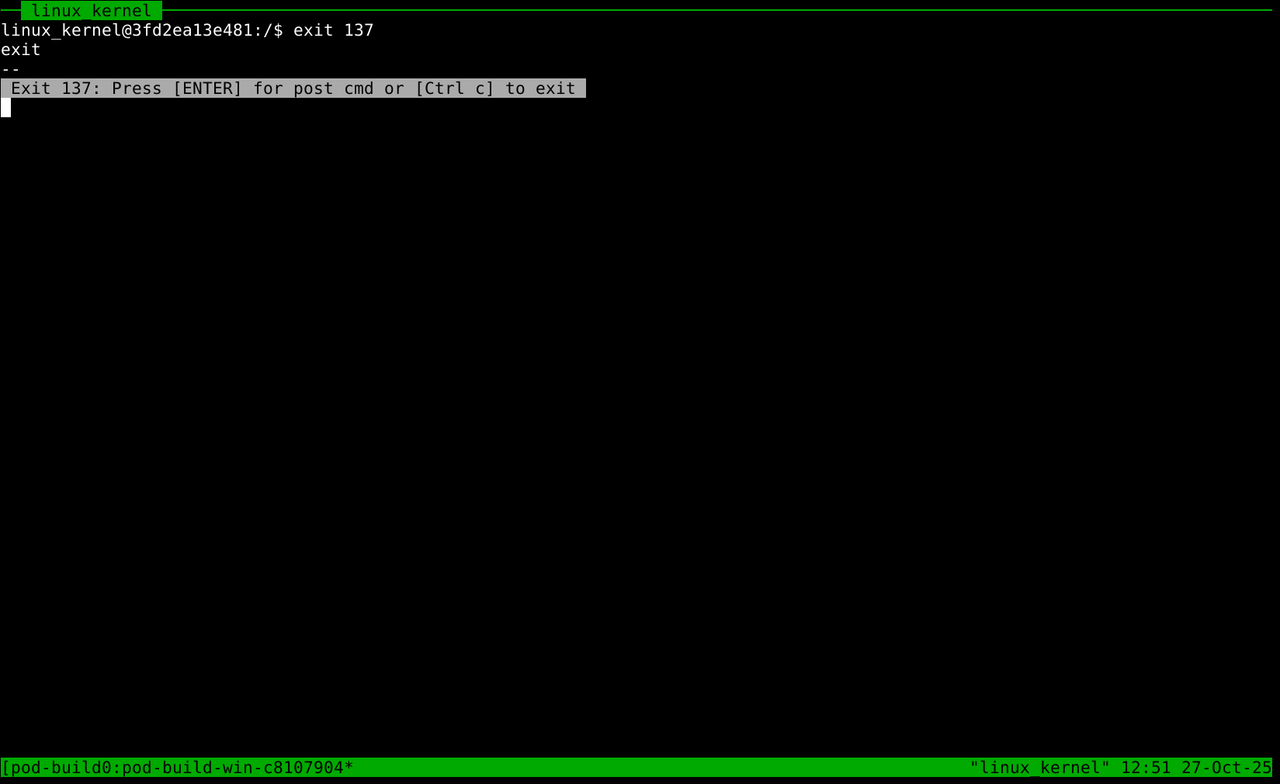

• Any other exit code is marked with a grey, blinking bar. When a container's main process exits and the container stops, it will inherently exit all podman exec (tmux) commands attached to it with non-zero exit codes, such asCode 137.

  • Container linux_kernel stops because main process finished



• The same applies to multiple, chained commands.

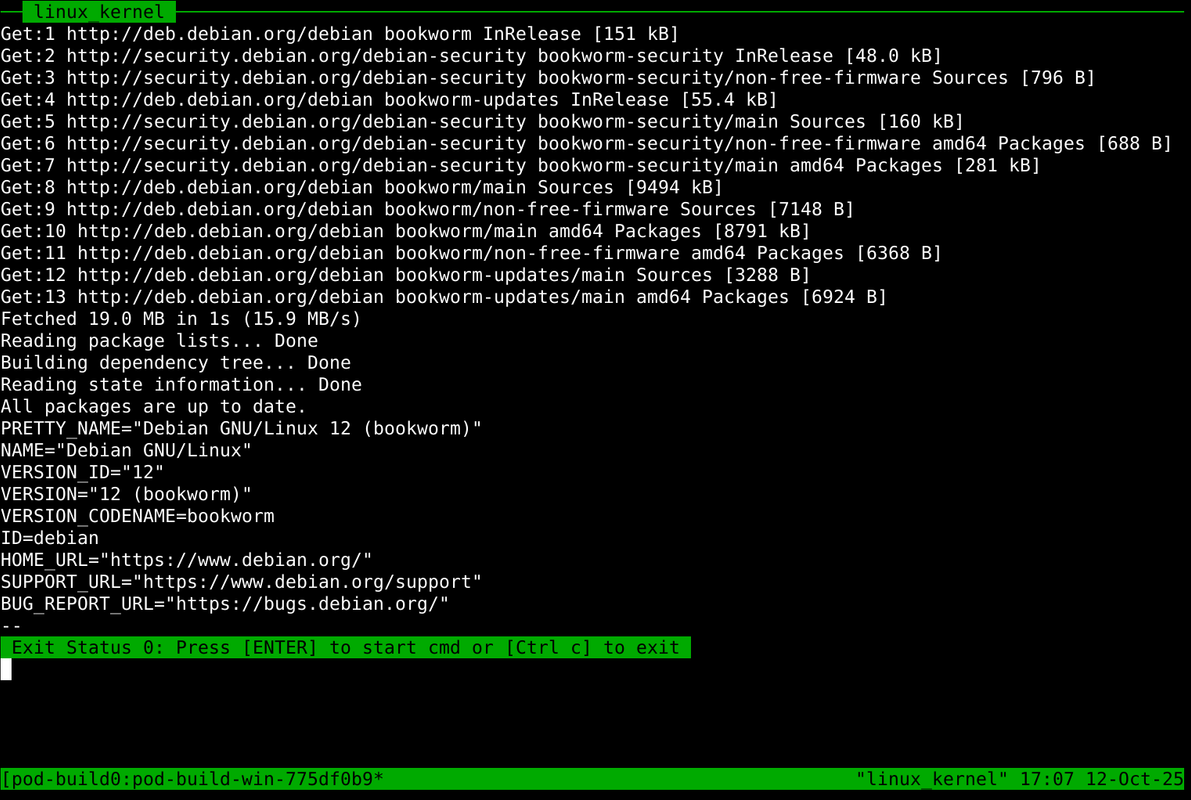

  • Running a command chain inside container linux_kernel that exits 0

    ./pod-buildah -t linux_kernel -c "sudo apt update && cat /etc/*-release"



• If any part of the chain exits 1, the red bar will appear.

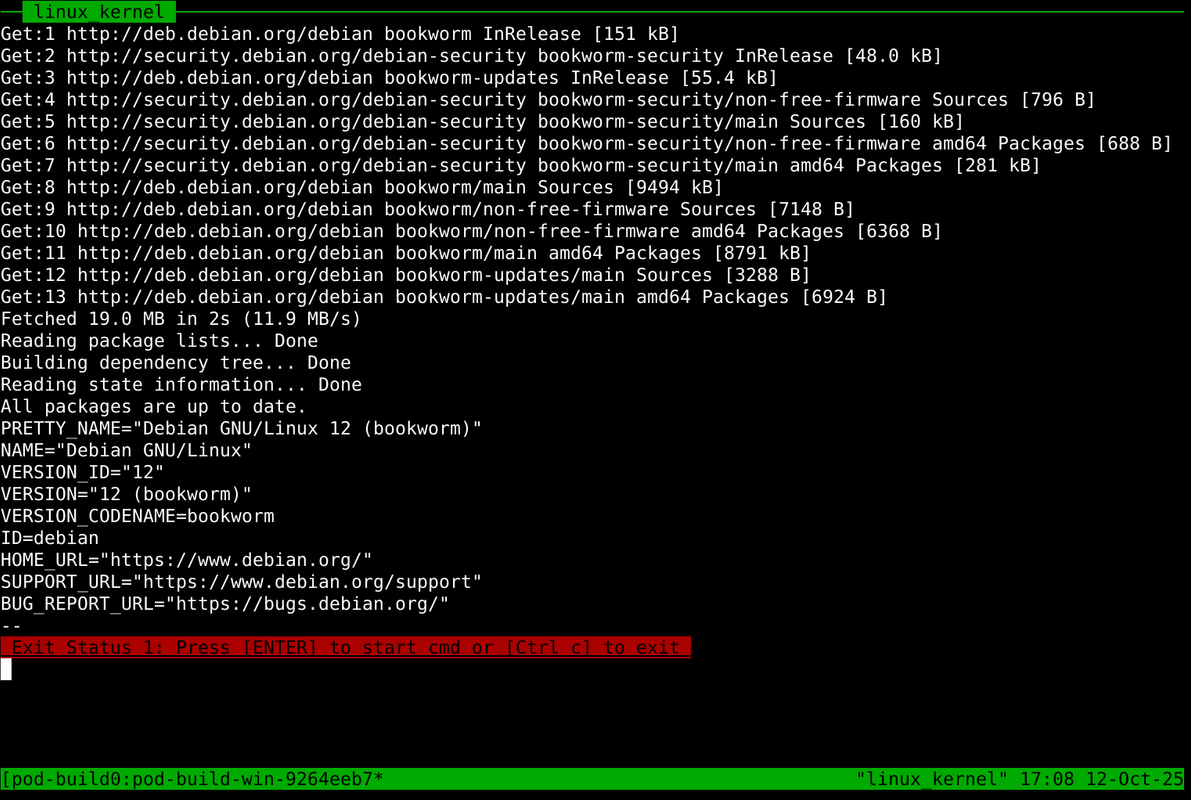

  • Running a command chain inside container linux_kernel that exits 1

    ./pod-buildah -t linux_kernel -c "sudo apt update && cat /etc/*-release && exit 1"

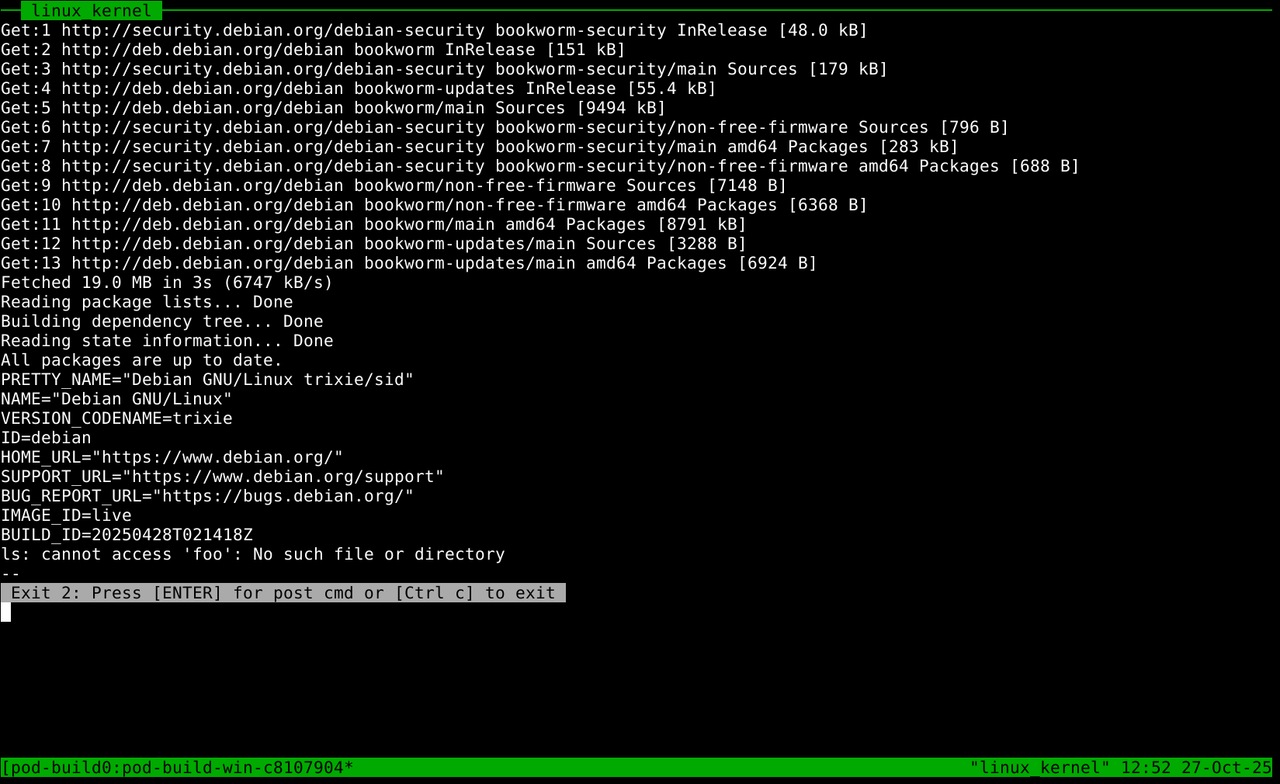

• Non-zero or one exit codes again result in a grey bar being displayed.

  • Running a command chain inside container linux_kernel with ambiguous exit

    ./pod-buildah -t linux_kernel -c "sudo apt update && cat /etc/*-release && ls foo"



🔼 Back to Top

Build Folders

• Build-Data

• The directory pod-buildah/build-data contains your project folders from which each individual container can read 4 files, url, branch, packages and pod_start.

  Name	Description	Location
  url	Any github repository url which the container can clone and update from	host: pod-buildah/build-data/url
  branch	Any github repository branch	host: host: pod-buildah/build-data//branch
  packages	Build dependencies to be installed inside the container	host: pod-buildah/build-data//packages
  pod_start	A custom script that will launch the container process	host: pod-buildah/build-data//pod_start
  scripts	A folder for additional helper scripts to be called by pod_start	host: pod-buildah/build-data//scripts

• url, branch and packages do not necessarily have to be populated and can also be supplied via options -u|--url, -b|--branch and -p|--packages. If they are left empty, the corresponding env variables $PACKAGES and $URL and $BRANCH will be empty in the container.

• During the container's image creation, the included main script pod-buildah/build-data/<target>/pod_start (and all scripts located in pod-buildah/build-data/<target>/scripts) is placed in the container image's /usr/bin and executed by default when the container starts.

🔼 Back to Top

Getting Started

• First Steps

• Example folders nyxt and linux_kernel with working main scripts have been added to pod-buildah/build-data, serving as templates for build containers.

1. Add a target name to pod-buildah/help-steps/targets.
2. Create a folder with that target name in build-data pod-buildah/build-data/<target_name>.
3. Create the main script pod-buildah/build-data/<target_name>/pod_start.
4. (Optional) Create the folder pod-buildah/build-data/<target_name>/scripts for additional helper scripts.
   • All scripts located in pod-buildah/build-data/<target_name>/scripts are copied to the docker image's /usr/bin/
   • You may add additional helper scripts which can be called by pod_start from /usr/bin.
5. (Optional) Add a url, branch and packages file to pod-buildah/build-data/<target_name>, which will be used as defaults.
   • Another way of supplying these values is via options -b|--branch, -u|--url, -p|packages.
6. Execute pod-buildah with your desired options.

🔼 Back to Top

Command Options

• Parameters

Option	Description	Sample Value
-e, --engine	Preferred container engine	podman (default)
-t, --target	Build target(s) designated in pod-buildah/help-steps/targets	nyxt
-w, --wipe	Empty logs, clear clone and artifacts directory	none
-d, --detach	do not automatically attach tmux session	none
-u, --url	Clone url of desired git repository	https://github.com/atlas-engineer/nyxt
-b, --branch	Branch name(s) of desired git repository	master
-p, --packages	Build dependencies in single line or column format	"build-essential make cmake"
-c, --command	Execute a custom command instead of the build script	/bin/bash
-r, --rebuild	Remove and rebuild the specified image	main
-s, --signal	Send a signal to the container	restart
-x, --prefix	Add a custom prefix to your target name	container_
-sv, --source-volume	Absolute path of the source volume	"$HOME/source"
-cv, --cacher-volume	Absolute path of the apt-cacher volume	"$HOME/cache"
-si, --source-image	Base image type that buildah uses with 'from' instruction	"docker.io/debian:bookworm-slim"
-bl, --branch-log	Separate (LOG_1) log files when multiple branches are passed	none
-ln, --log-name	Assign custom naming scheme to a single or all log files	log1,log2,log3
-pc, --post-command	Custom command that is executed inside the container after the main process exits	/bin/bash
-tc, --tmux-command	Custom command that is executed inside the tmux session after the main process exits	htop
-cb, --custom-base	Path to a custom base.sh script to setup the container image	~/scripts/base.sh
-h, --help	Print usage dialog	none

🔼 Back to Top

Options In-Depth

• Parameter Description

1. -t, --target accepts target names specified in pod-buildah/help-steps/targets. Multiple target inputs are separated by , which will be started in sequence, having all further options apply to each container equally. For example, -t <target1>,<target2>

2. -r, --rebuild removes and rebuilds a specific or all given image names. It accepts either main or cache, but both inputs are also possible. For example, -r cache,main, -r main or -r cache.

   • main is the container image, derived from the source_image, which can be changed with option -si|--source-image (Default is debian:bookworm-slim).pod-buildah/build-data/<target_name>/pod_start and all scripts located in pod-buildah/build-data/<target_name>/scripts are copied to its /usr/bin` directory. If changes have been made to any of these scripts outside of a running container, the main image needs to be rebuilt in order to reflect those changes.

   • cache is the apt-cacher container image. acng.conf can be modified in pod-buildah/apt-cacher/acng.conf

3. -p, --packages allows overriding the default packages to be installed in a container which are specified in pod-buildah/build-data/<target>/packages. This argument needs to be passed with quotes ""

   • Example: --packages "build-essential cmake libssl-dev"
   • Example: -p "$(xargs <./my_package_list)"

4. -s, --signal sends a signal to an existing container.

   • restart - restarts the container if it exists (only acts as stop with run option --rm)
   • stop - stops the container if it is running
   • kill- kills the container if it is running
   • rm - removes the container if it exists
   • "rm --force" kills and removes the container if it exists

5. -pc, --post-command specifies a custom command executed inside the container after the container process exits.

   • This option grants the ability to add a custom command executed after the container's main process exits. Any command is valid, but the most sensible use of this option would be to keep a container from stopping after its main process exits by for example passing -pc /bin/bash. This would result in both the container itself and it's corresponding pod-buildah tmux session to remain open indefinitely, even after the main process has been completed.

6. -x, --prefix allows for the use of a custom prefix

   • The container labels, image label, tmux title and user inside the container are named by the target_name.
   • This option allows for an additional identifier to be added to that name, changing the target_name to<prefix><target_name>

7. -sv, --source-volume determines the mount location of the source volume

   • The source volume contains logs, artifacts and clone directories which are used inside the container.

8. -si, --source-image determines the base image tag aka the operating system.

   • docker.io/debian:bookworm-slim is used by default, but any version of Debian or its derivatives can be used.

9. -bl, --branch-log allows separate log files to be generated for the first log type (default: install.log). When multiple branches are selected with option -b|--branch, pod-buildah will create separate log folders for each branch. By default the install.log or first of the three log types, is never created individually across separate branch folders. This is because the installing of packages would yield the same output across all separate install logs, which makes individual logging unecessary. Option -bl|--branch-log stops this, by creating the first log (install.log) separately among all branch folders. This makes sense if the user needs separate outputs of this log for each branch, which would require minor adjustments in pod_start.

10. -tc, --tmux-command executes a custom command inside a pod-buildah tmux session after the container process exits.

    • Whenever a container exits its corresponding pod-buildah tmux pane will display a graphical representation of the exit code (red or green) with the option to launch a custom command by pressing Enter or to exit completely via Crl + c. By defaut, this custom command, if executed, opens all files located in the current target buid-data folder with neovim to allow for modifications after a container run. This option grants the ability to change that command.

🔼 Back to Top

Command Examples

• Command Structure

1. Single container targets can be run one by one in order to specifiy arguments individually.

./pod-buildah -t <target_name> -p "libgcc-s1 librhash1 libstdc++6 zlib1g" -x "test1" -bl

2. Or multiple targets can be run in sequence, meaning the specified arguments will apply to all given target containers equally.

./pod-buildah -t <target_name1>,<target_name2>,<target_name3> -p "libgcc-s1 librhash1 libstdc++6 zlib1g" -x "test1" -bl

3. When running singular instances of pod-buildah in a command , make sure to use option -d|--detach so that the tmux session isn't attached until the final container is started.

./pod-buildah -t <target_name> -d; ./pod-buildah -t <target_name2> -d; ./pod-buildah -t <target_name>3

• Sample Commands

• Builds the Nyxt Browser with default branch, url and packages.

  ./pod-buildah -t nyxt

• Builds the Nyxt Browser with different packages than the default.
  • The default packages in pod-buildah/build-data/nyxt/packages are overwritten by option -p|--packages

  ./pod-buildah -t nyxt -p "build-essential cmake ninja-build cmake-format"

• Builds the Linux Kernel branch 6.15
  • The current default branch is 6.15 in pod-buildah/build-data/linux_kernel/branch

  ./pod-buildah -t linux_kernel

• Builds the Linux Kernel branch 6.16
  • The option -b|--branch overwrites the default value

  ./pod-buildah -t linux_kernel  -b v6.16

• Builds the Linux Kernel branches 6.15, 6.16 and 6.17-rc4

  ./pod-buildah -t linux_kernel  -b v6.15,6.16,6.17-rc4

• Builds both targets with default values, a custom source volume location and prefix.

  ./pod-buildah -t nyxt,linux_kernel -sv /home/user/Documents -x test_01`

• Executes a custom command /bin/bash in the container linux_kernel

  ./pod-buildah -t linux_kernel -c /bin/bash

• Executes a custom command chain in the container linux_kernel

  ./pod-buildah -t linux_kernel -c "whoami;sleep 5; cat /etc/*-release"

• Executes a custom command chain in containers linux_kernel and nyxt

  ./pod-buildah -t nyxt,linux_kernel -c "sudo apt update && sudo apt install htop && htop"

• Rebuilds the container image and changes log titles of container linux_kernel

  ./pod-buildah -t linux_kernel -r main -ln "packages.log,pre-build.log,compil.log" -b v6.15,6.16

• Changing the source image, adding a custom base.sh and post command with container linux_kernel

  ./pod-buildah -t linux_kernel -si docker.io/ubuntu:plucky -cb ~/Documents/base.sh -pc /bin/bash

• Preview GIF 2 Commands

• Running custom command cbonsai in container linux_kernel, nyxt ffmpeg and mpv

  ./pod-buildah -t linux_kernel,nyxt,ffmpeg,mpv -c '/usr/games/cbonsai -l'

• Running custom command neofetch in container linux_kernel, nyxt ffmpeg and mpv

  ./pod-buildah -t linux_kernel,nyxt,ffmpeg,mpv -c 'neofetch --disable cpu'

• Running 4 separate custom commands in containers linux_kernel, nyxt ffmpeg and mpv. (pb used as alias for ./pod-buildah)

   pb -t nyxt -c 'sudo gping google.com --cmd echo -c green -n .2 -b 10' -d
   pb -t mpv -c 'nyancat -s' -d
   pb -t ffmpeg -c 'cmatrix' -d
   pb -t linux_kernel -c 'sleep .2;atop -t 1 -axgm'

🔼 Back to Top

File Overview

• Folder Structure

Scripts

Name	Description	Location
pod-buildah	Main script that accepts options and launches all containers	host: pod-buildah/pod-buildah
base.sh	Install script that sets up a basic OCI/docker image	host: pod-buildah/base.sh
cache.sh	Launches an apt-cacher-ng container and is automatically called by pod-buildah	host: pod-buildah/apt-cacher/cache.sh
pod_start	Main script executed inside the container controlling its behavior	host: pod-buildah/build-data/<target>/pod_start

Folders & Files

Name	Description	Location	Type
build-data	contains user defined build folders	pod-buildah/build-data	Folder
scripts	contains helper scripts which are copied to the image	pod-buildah/build-data/scripts	Folder
url	default git url to be cloned	pod-buildah/build-data/<target>/url	File
branch	default git branch to be clone	pod-buildah/build-data/<target>/branch	File
packages	default packages to be installed inside the container	pod-buildah/build-data/<target>/packages	File
source	mount directory of all containers	pod-buildah/source	Folder
clone	contains the cloned source code	pod-buildah/source/<target>clone	Folder
artifacts	destination directory for built libraries, binaries etc.	pod-buildah/source/<target>artifacts	Folder
logs	contains all target logs generated by container.sh	pod-buildah/source/<target>logs	Folder
apt-cacher	source directory for apt-cacher-ng files	pod-buildah/apt-cacher	Folder
cache	mount directory of apt-cacher-ng container's cache	pod-buildah/apt-cacher/cache	Folder
help-steps	contains variables, functions and configs	host: pod-buildah/help-steps	Folder
targets	contains a list of all containers which can be launched	host: pod-buildah/help-steps/targets	File
script_template	a user defined script template for pod_start	host: pod-buildah/help-steps	Folder

🔼 Back to Top

Mount Directories

• Volume Mounts

By default two folders are generated upon starting a container, if not otherwise defined.

Name	Description	Default Location
source	Mounts the build container's working directory	host: pod-buildah/source
cache	Mounts the cache container's /var/cache/apt-cacher-ng directory	host: pod-buildah/apt-cacher/cache

• The source directory contains 3 sub-directories
  • clone - contains the cloned source code
  • artifacts - meant to contain built binaries, libraries etc. after a successful build
  • logs - contains the log files
• Options --source-volume and --cacher-volume can be used to set custom locations.
• If the apt-cacher container is running, the apt-cacher volume remains the same until it is stopped.
• All build containers automatically connect to the apt-cacher container via host.containers.internal. In case of a large amount of simultaneous clients, additional apt-cacher containers will be deployed to cover the overhead.

🔼 Back to Top

Container Defaults

• Default Behavior

Container State

1. By default, the script's podman run command launches containers with the --rm flag. This means that once a container exits all data that was not preserved in a mount is lost. It also means that a container can never exist without simultaneously running. By default only one instance of a container based on an image can exist at any given time. pod-buildah can distinguish between a running and existing container, allowing for the --rm flag to be removed if so desired.

2. When a running container's target is launched again with pod-buildah, the call is simply ignored in order to preserve data and the ongoing container process. Tmux panes corresponding with this container target however are respawned, to allow quick and easy restarting of dead panes without container interference. If option -c|--command was used, the pod-buildah pane running this command will be respawned with the newly passed command directive, which is either custom or default (/bin/bash). The same goes for options -tc|--tmux-command. Option -pc|--post-command is ignored however, because the current container process is still running.

3. Containers exit after execution of the main process has been completed. When this happens, any command attached in the tmux session pod-buildah, be it custom or the default /bin/bash, will also exit. This behavior can be changed with option -pc|--post-command. In order to keep the container running after the main process one could for example pass -pc /bin/bash. This would result in both the container itself and it's corresponding pod-buildah tmux session to remain open indefinitely.

4. Containers can run /bin/bash as a default post-command after the main process exits in order to prevent the container from stopping and allowing for potential troubleshooting or general access through a pod-buildah tmux pane. In order to enable this behavior uncomment #CT_POST_ARG="/bin/bash" in pod-buildah/help-steps/variables

Auto-Generated Files

3. All log files, source and build folders are automatically generated. Technically, a target_name is all that's needed to run pod-buildah and start any given container. If no main script pod_start has been provided, a script_template will be copied in its place. By default, this template does not execute anything, but it can be changed to perform a default task.

Logging Convention

4. The default log file names are install.log, git.log and build.log. Option -ln|--log-name automatically overwrites these values. If less than three names are given, the default remainder still applies. For example, -ln "prep.log,download.log" would yield the following log names, prep.log, download.log, build.log. And -ln "prep.log" results in prep.log, git.log, build.log.

5. When multiple branches are selected with option -b|--branch, pod-buildah will create separate log folders for each branch. By default the install.log or first of the three log types, is never created individually across separate branch folders. This is because the installing of packages would yield the same output across all separate install logs, which makes individual logging unecessary. Option -bl|--branch-log stops this, by creating the first log (install.log) separately among all branch folders. This makes sense if the user needs separate outputs of this log for each branch, which would require minor adjustments in pod_start.

Neovim

6. pod-buildah/hel-steps/vimrc can be configured to change neovim's behavior as needed. By default it contains functions for tailing, renaming tab titles and color scheme adjustments.

Tmux

7. Only three sessions are created by default, pod-buildah, pod-log and apt-cacher. Each pod-buildah session can have a max of 4 panes and each pod-log session 9 panes, before a new window is created. This behavior can be changed by modifying MAX_BUILD_PANE="4" MAX_LOG_PANE="12" in pod-buildah/help-steps/variables. 12 log panes seem to be the sweet spot where each pane's log output is still reasonably legible.

🔼 Back to Top

Container Environment

• Environment Variables

The container will provide environment variables, which can be used by the build script, carrying the values given via certain options such as for example --build-packages, --git-url etc. and more.

Variable	Description	Default Value
CLEAN	Set by option `-w	--wipe`
SOURCE_DIR	Mother directory inside the container	/home/<target_name>
CLONE_DIR	Clone directory inside the container	/home/<target_name>/clone
ARTIFACT_DIR	Artifact directory inside the container	/home/<target_name>/artifacts
LOG_DIR	Log directory inside the container	/home/<target_name>/logs
TARGET	Current target name	<target_name>
URL	Url indicated in target build-data or via option	null
BRANCH	Branch indicated in target build-data or via option	null
PACKAGES	Packages indicated in target build-data or via option	null
LOG_POSTFIX	Default log names or supplied via option	null
TIMEFORMAT	ENV variable used by time for custom formats of elapsed time	custom

🔼 Back to Top

Using Services for Automation

• Systemd Integration

• You can use the provided .service file to automate the execution of any container/cluster with specific arguments and within a given time frame. This is probably the most convenient way to deploy build containers under certain conditions, for example when a new github release is available.

Caching

• Apt-Cacher-Ng

• The apt-cacher container publishes port 3142:3142/tcp which all build containers automatically point towards via host.containers.internal and apt.conf option Acquire::http::Proxy.
• acng.conf is available under pod-buildah/apt-cacher/acng.conf for further customization
• Health checks are performed in 15s intervals. podman ps will indicate a healthy (working) or unhealthy (dead) status.
• Once the maximum number of connections has been reached, the apt-cacher container will automatically launch an additional instance. This process will continue up to a maximum of 5 simultaneously running apt-cacher containers.

🔼 Back to Top
