Fix buffer topology problem with building merging #1704
Merged
+30
−2
Conversation
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters

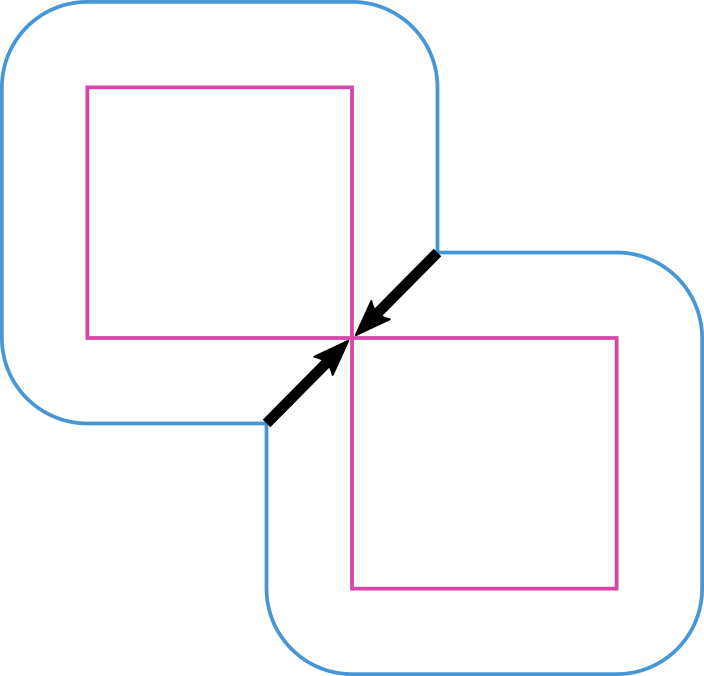

Building merging expands building footprints using `buffer`, simplifies them and then contracts them back. This means that a saddle point, where two buildings meet, creates two buffered out points which then collapse back onto exactly the same point when buffered negatively. This can, but doesn't usually, result in a topological error, and creates an invalid polygon. Instead of this, we can buffer out by a very, very slightly smaller value, which should tie-break the points coming back in, and mean that there's enough precision for the inside/outside or left-of/right-of tests to work properly.
rmarianski
approved these changes
Nov 14, 2018
| '439040713D0A070C6B5941666666666692904085EB51A80D6B5941333333' | ||
| '3333B99040EC51B84E066B594100000000006A9040B81E85AB046B59415C' | ||
| '8FC2F528439040713D0A070C6B5941'.decode('hex') | ||
| ) |
Member
There was a problem hiding this comment.
Would the wkt be equally opaque here?
Member
Author
There was a problem hiding this comment.
Pretty much. I've also had issues before where the WKT is lower precision and so doesn't exhibit the problem, but I'll go check.
Member
Author
There was a problem hiding this comment.
Yup, I tried a version of the test with WKT instead of WKB and it doesn't trigger the same bug. Creating simpler geometries (e.g: box(1,2,3,4)) also failed to reproduce. Unfortunately, I think we're stuck with the opaque WKB 😞
