No description provided.

kunaltyagi

❤️

kunaltyagi · 2021-08-14T01:39:48Z

+
+template <typename>
+void
+EXPECT_POINT_EQ(const PointXYZRGB& pt1, const PointXYZRGB& pt2)


Is the point type unknown that we have to use template specialization?

pcl/test/filters/test_experimental_voxel_grid.cpp

Lines 74 to 82 in 8c893c0

auto pt_cmp = [](const PointT& p1, const PointT& p2) -> bool {

return p1.x > p2.x || (p1.x == p2.x && p1.y > p2.y) ||

(p1.x == p2.x && p1.y == p2.y && p1.z > p2.z);

};

std::sort(pc1.begin(), pc1.end(), pt_cmp);

std::sort(pc2.begin(), pc2.end(), pt_cmp);

for (size_t i = 0; i < pc1.size(); ++i)

EXPECT_POINT_EQ<PointT>(pc1.at(i), pc2.at(i));

Is there any better way than using template specialization? because I don't want to duplicate the sorting code here

I couldn't think of any. LGTM

* Take leaf size instead of inverse leaf size * Fix documentation * Adapt unit tests

* Remove the first multiplication as divb_mul_[0] is always 1 * Add test for 2D grid * Move outside as free functions

* Remove confusing comment in applyFilter * Add line endings * Fix typo

* Inherit from TransformFilter and GridFilterBase * Complete the API of old VoxelGrid * Implement new way for checking unsigned int overflow * Improve performance by switching from sorting to unordered_map

* Inherit from GridFilterBase instead of TransformFilter

* Avoid storing two centroids with different downsample_all_data option by getVector4fMap

* Remove hashPoint and checkIfOverflow from GridStruct * Pass TransformFilter pointer to setUp for further refactoring * Remove getDerived() * Remove redundant hashing unit test

* Avoid depending on variables generated by the grid filters, and rename to HashingPoint * Remove friend for unit testing

* Input arguments are passed as const * Add const for unchange variables * Remove boilerplate code and comments * Remove initializer list and initialize default variables directly

* TransformFilter holds GridStruct instead of inheriting it * Add helper functions in VoxelStructT for accessing Grid

* Add office1.pcd and fivepeople.pcd

* Allocate new object is faster than clear by benchmarking

* Avoid repeatedly allocate voxels for by unordered_map::clear()

* Reduce copying unnecessary field when only downsampling xyz

* Pass TransformFilter point to constructor of GridStruct instead of setUp

* Allow reusing VoxelStruct members

* Rename GridIterator to iterator * Adapt changes in experimental VoxelGrid * Adapt changes in experimental VoxelGrid test

* Template VoxelStruct with FilterBase

tin1254 · 2021-08-20T12:49:21Z

+  {
+    num_pt_ = 0;
+    if (downsample_all_data_)
+      centroid_.all_fields = CentroidPoint<PointT>();


I have been trying to fix the seg fault with the new VoxelGridILabel for a while but didn't success. I found our approach to union with CentroidPoint doesn't work with msvc and clang on mac for point types with label (e.g. PointXYZRGBL)

It throws a seg fault when assigning a new CentroidPoint to all_fields, but doesn't have error if assigning to a normal variable (not union). When I look at the call stack, the error happens during move assignment of std::map<std::uint32_t, std::size_t> which should come from:

pcl/common/include/pcl/common/impl/accumulators.hpp

Line 189 in 7194dd7

std::map<std::uint32_t, std::size_t> labels;

Do you have any idea why this happens? @kunaltyagi @mvieth I feel like this is out of my knowledge..

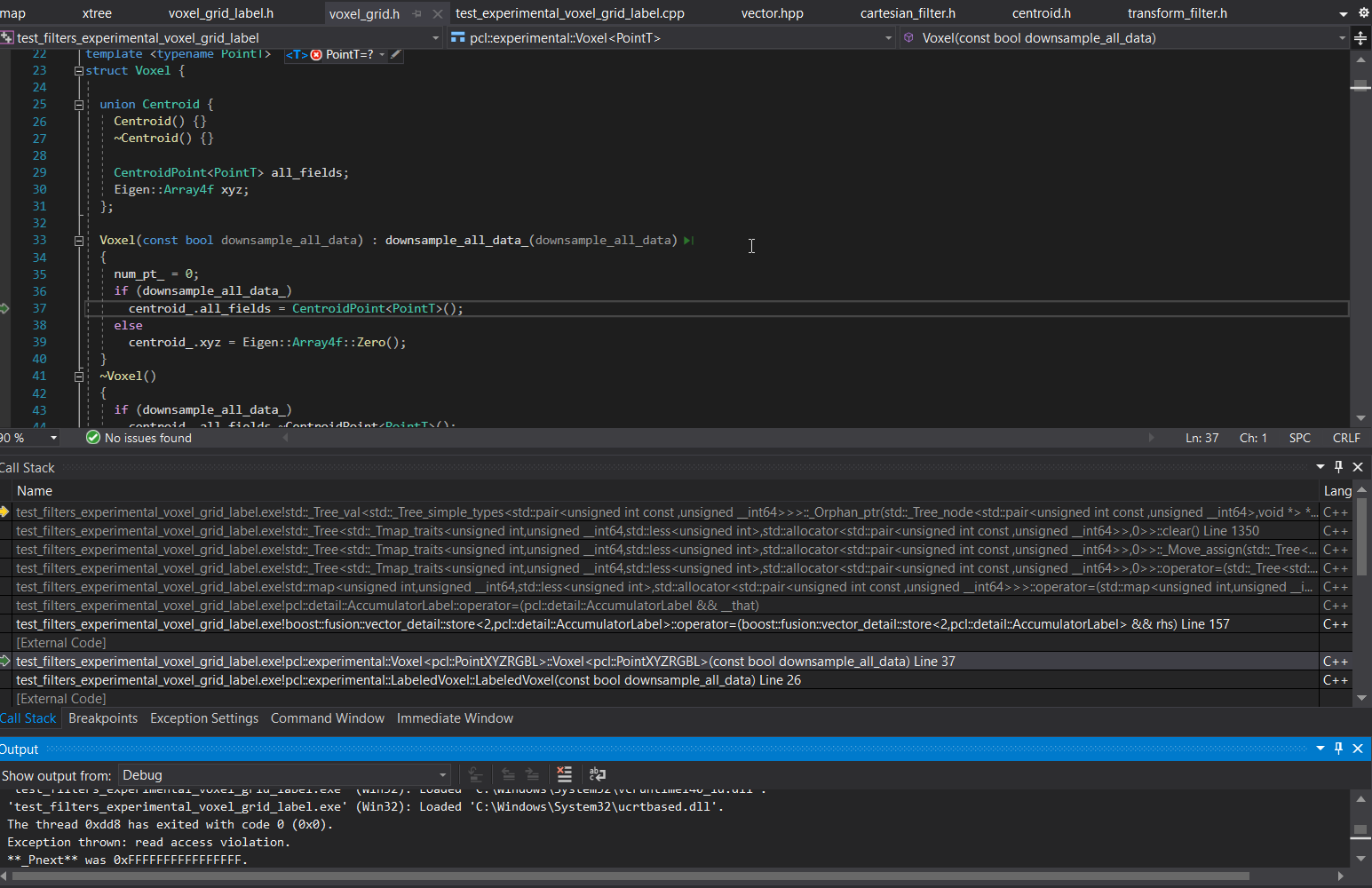

Call stack with msvc

doesn't work for point types with label

Is this true for even simple stuff like PointXYZL?

yes, it throws the same error and call stack

What about points with intensity?

It works all fine

The sole difference between XYZI and XYZL is that intensity is inside a struct in the union instead of just a variable

But I think the biggest difference is the types with labels has std::map in the struct, other are all float or float array

In the CentroidPoint you mean?

yes, accumulator specifically

kunaltyagi · 2021-08-20T18:27:32Z

+
+template <typename>
+void
+EXPECT_POINT_EQ(const PointXYZRGB& pt1, const PointXYZRGB& pt2)


I couldn't think of any. LGTM

kunaltyagi · 2021-08-20T19:03:04Z

+  union Centroid {
+    Centroid() {}
+    ~Centroid() {}
+
+    CentroidPoint<PointT> all_fields;
+    Eigen::Array4f xyz;
+  };


Do you think some alignment issue due to Eigen is causing the issue here? CentroidPoint uses PCL_MAKE_ALIGNED_OPERATOR_NEW and Eigen definitely has it's own alignment.

Could we try using something similar?

I tried both macro from PCL and Eigen and it's still the same.

Could you try to use valgrind to find why there's a weird issue with stack data and not heap data?

I'm still investigating this but the trace always go deep into stl library makes it difficult to debug

FYI

track by valgrind

==120237== Conditional jump or move depends on uninitialised value(s) ==120237== at 0x125F59: std::_Rb_tree<unsigned int, std::pair<unsigned int const, unsigned long>, std::_Select1st<std::pair<unsigned int const, unsigned long> >, std::less<unsigned int>, std::allocator<std::pair<unsigned int const, unsigned long> > >::_M_erase(std::_Rb_tree_node<std::pair<unsigned int const, unsigned long> >*) (stl_tree.h:1911) ==120237== by 0x1232FB: std::_Rb_tree<unsigned int, std::pair<unsigned int const, unsigned long>, std::_Select1st<std::pair<unsigned int const, unsigned long> >, std::less<unsigned int>, std::allocator<std::pair<unsigned int const, unsigned long> > >::clear() (stl_tree.h:1266) ==120237== by 0x12AB8B: std::_Rb_tree<unsigned int, std::pair<unsigned int const, unsigned long>, std::_Select1st<std::pair<unsigned int const, unsigned long> >, std::less<unsigned int>, std::allocator<std::pair<unsigned int const, unsigned long> > >::_M_move_assign(std::_Rb_tree<unsigned int, std::pair<unsigned int const, unsigned long>, std::_Select1st<std::pair<unsigned int const, unsigned long> >, std::less<unsigned int>, std::allocator<std::pair<unsigned int const, unsigned long> > >&, std::integral_constant<bool, true>) (stl_tree.h:1681) ==120237== by 0x125E65: std::_Rb_tree<unsigned int, std::pair<unsigned int const, unsigned long>, std::_Select1st<std::pair<unsigned int const, unsigned long> >, std::less<unsigned int>, std::allocator<std::pair<unsigned int const, unsigned long> > >::operator=(std::_Rb_tree<unsigned int, std::pair<unsigned int const, unsigned long>, std::_Select1st<std::pair<unsigned int const, unsigned long> >, std::less<unsigned int>, std::allocator<std::pair<unsigned int const, unsigned long> > >&&) (stl_tree.h:1723) ==120237== by 0x120FD4: std::map<unsigned int, unsigned long, std::less<unsigned int>, std::allocator<std::pair<unsigned int const, unsigned long> > >::operator=(std::map<unsigned int, unsigned long, std::less<unsigned int>, std::allocator<std::pair<unsigned int const, unsigned long> > >&&) (stl_map.h:100) ==120237== by 0x121002: pcl::detail::AccumulatorLabel::operator=(pcl::detail::AccumulatorLabel&&) (accumulators.hpp:211) ==120237== by 0x121030: boost::fusion::vector_detail::store<2ul, pcl::detail::AccumulatorLabel>::operator=(boost::fusion::vector_detail::store<2ul, pcl::detail::AccumulatorLabel>&&) (vector.hpp:156) ==120237== by 0x121094: boost::fusion::vector_detail::vector_data<std::integer_sequence<unsigned long, 0ul, 1ul, 2ul>, pcl::detail::AccumulatorXYZ, pcl::detail::AccumulatorRGBA, pcl::detail::AccumulatorLabel>::operator=(boost::fusion::vector_detail::vector_data<std::integer_sequence<unsigned long, 0ul, 1ul, 2ul>, pcl::detail::AccumulatorXYZ, pcl::detail::AccumulatorRGBA, pcl::detail::AccumulatorLabel>&&) (vector.hpp:184) ==120237== by 0x1210C2: boost::fusion::vector<pcl::detail::AccumulatorXYZ, pcl::detail::AccumulatorRGBA, pcl::detail::AccumulatorLabel>::operator=(boost::fusion::vector<pcl::detail::AccumulatorXYZ, pcl::detail::AccumulatorRGBA, pcl::detail::AccumulatorLabel>&&) (vector.hpp:262) ==120237== by 0x121106: pcl::CentroidPoint<pcl::PointXYZRGBL>::operator=(pcl::CentroidPoint<pcl::PointXYZRGBL>&&) (centroid.h:1022) ==120237== by 0x1211B5: pcl::experimental::Voxel<pcl::PointXYZRGBL>::Voxel(bool) (voxel_grid.h:37) ==120237== by 0x11D7D8: pcl::experimental::LabeledVoxel::LabeledVoxel(bool) (voxel_grid_label.h:27)

It goes through several move assign, and when I tried to declare my move assign function the trace go somewhere also related to std::map in AccumulatorLabel

I'm trying to use boost::variant to avoid this but it is only a bit slower

Since we will transit to std::variant anyway once we move to C++17, I think it is better to use boost::variant so that the transition can be easier.

althrough we might sacrifice some performance in theory (boost::get has a runtime check)

Performance

But runtime results are very similar in my benchmark

union

---------------------------------------------------------------------------- Benchmark Time CPU Iterations ---------------------------------------------------------------------------- table_VoxelGrid 6.26 ms 6.26 ms 111 table_ApproximateVoxelGrid 5.08 ms 5.08 ms 137 table_FunctorVoxelGrid 3.99 ms 3.99 ms 174 milk_cartoon_VoxelGrid 8.01 ms 8.01 ms 88 milk_cartoon_ApproximateVoxelGrid 5.49 ms 5.49 ms 126 milk_cartoon_FunctorVoxelGrid 4.61 ms 4.61 ms 151 office_VoxelGrid 13.4 ms 13.4 ms 51 office_ApproximateVoxelGrid 8.10 ms 8.10 ms 85 office_FunctorVoxelGrid 11.7 ms 11.7 ms 55 five_people_VoxelGrid 14.0 ms 14.0 ms 51 five_people_ApproximateVoxelGrid 7.48 ms 7.47 ms 92 five_people_FunctorVoxelGrid 8.50 ms 8.50 ms 76

boost::variant

---------------------------------------------------------------------------- Benchmark Time CPU Iterations ---------------------------------------------------------------------------- table_VoxelGrid 6.42 ms 6.42 ms 110 table_ApproximateVoxelGrid 5.09 ms 5.08 ms 138 table_FunctorVoxelGrid 4.16 ms 4.16 ms 168 milk_cartoon_VoxelGrid 8.17 ms 8.17 ms 85 milk_cartoon_ApproximateVoxelGrid 5.56 ms 5.56 ms 122 milk_cartoon_FunctorVoxelGrid 4.87 ms 4.87 ms 139 office_VoxelGrid 13.6 ms 13.6 ms 52 office_ApproximateVoxelGrid 8.08 ms 8.08 ms 85 office_FunctorVoxelGrid 11.3 ms 11.3 ms 59 five_people_VoxelGrid 13.7 ms 13.7 ms 51 five_people_ApproximateVoxelGrid 7.49 ms 7.49 ms 92 five_people_FunctorVoxelGrid 8.38 ms 8.38 ms 80

* Replace point check with existing marcos * Remove setUp check with different point types * Template equivalency check with point types
