Add easier debug logging for users #277

sethmlarson · 2019-08-26T11:58:35Z

This builds on #240 and adds it to all request-making dispatchers. It can be added to ASGI and WSGI dispatchers as well but I'm less familiar with what information would be useful for debugging those use-cases.

This also adds a new environment variable HTTPX_DEBUG which can be turned on to automatically display these debug logs.

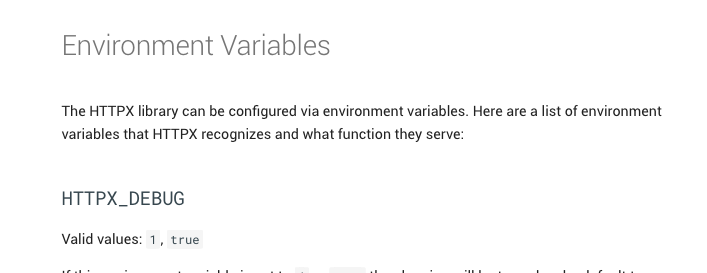

A new section Environment Variables has been added to the documentation with the intent of future expansion for all environment variables that HTTPX will react to.

Closes #221.

florimondmanca · 2019-08-26T12:10:56Z

This is a great idea. I'll take a closer look later, but do you know about structlog? Your key=value logging style here made me think it could be worth considering it (or another structured logging library). :-)

sethmlarson · 2019-08-26T12:13:04Z

I initially thought to use structlog, mostly didn't want to add a dependency just so we can do debug logging on a client library. Are there other structured logging libraries out there?

florimondmanca · 2019-08-26T12:31:21Z

I don't know of other structured logging libraries. But I think the real question here is, as you said: is adding another dependency for debug logs worth it? I'm not sure it is either. :-)

It's probably possible to build our own formatting helper, starting with something really simple.

There's a structured logging section in the Logging cookbook, which could helper us build a helper to be used like this:

from httpx.logging import structured
logger.debug(structured("log message", key="value"))

The cookbook recipe dumps the output as JSON, but we can take inspiration from structlog's rendering implementation here too to achieve the style you've got here.

florimondmanca · 2019-08-26T12:37:26Z

I think all of this can be figured out later as a refactoring step for this PR, though — just jotting down ideas here, but it's not a blocker at all. :-)

florimondmanca

Really excited about how helpful this will be for debugging requests! I left a couple of comments on details.

docs/environment_variables.md

florimondmanca · 2019-08-26T20:15:16Z

docs/environment_variables.md

+Here are a list of environment variables that HTTPX recognizes
+and what function they serve:
+
+HTTPX_DEBUG


Suggested change

HTTPX_DEBUG

`HTTPX_DEBUG`

Doesn't make any display difference using mkdocs-material (I tried it) but we'll go with it anyways :)

Or really? I looked at the "Developer Interface" page and e.g. Client is rendered in a monospace font. Perhaps it's the use of === / --- instead of # and ## for headers?

I checked, and regardless of the header markup style (which I think we could/should convert to using shebangs since that's what we use everywhere else?) I do get monospace when using code fences:

cc: @tomchristie potential mkdocs-material improvement? :)

docs/environment_variables.md

httpx/utils.py

docs/environment_variables.md

florimondmanca · 2019-08-26T20:56:01Z

Also, will this fix #33?

Co-Authored-By: Florimond Manca <[email protected]>

sethmlarson · 2019-08-26T21:18:07Z

Not quite, that issue is way too broad for its own good. Maybe we should close it and open issues with the specific tasks it requires.

florimondmanca

A couple more polish suggestions!

httpx/utils.py

docs/environment_variables.md

sethmlarson · 2019-08-27T00:57:09Z

@florimondmanca Incorporated your suggestions!

florimondmanca

One last suggestion I didn’t see earlier and we’ll be good to merge 🚀

tests/dispatch/utils.py

httpx/dispatch/http11.py

lovelydinosaur · 2019-08-27T11:16:10Z

httpx/dispatch/http11.py

+            f"send_request method={request.method!r} "
+            f"target={request.url.full_path!r} "
+            f"headers={request.headers!r}"
+        )


We probably also want to log the sending of h11.Data and h11.EndOfMessage events, right?

Yeah I can add that!

lovelydinosaur · 2019-08-27T11:17:48Z

Fantastic, I'm loving this!

Couple of comments worth taking a look at.

lovelydinosaur · 2019-08-27T11:33:02Z

Possible later additions here:

INFO level - log responses in an access log like style - method, URL, status code. We'd probably want to include all redirect requests there too.
WARNING level - Dropped connections, invalid responses, timeouts etc. Basically anything where a request was started but no response was available to log.

INFO httpx.client GET https://example.com/redirect-to-home 304 <Location: https://example.com/>
INFO httpx.client GET https://example.com/ 200
WARN http.client GET https://example.com/ Failed with ReadTimeout(...)

sethmlarson · 2019-08-27T12:10:19Z

With the latest change I tried to normalize the two sets of events being logged for HTTP/1.1 and HTTP/2 so they're similar to look at and debug.

HTTP/1.1

07:02:42.128 - httpx.dispatch.connection_pool - acquire_connection origin=Origin(scheme='https' host='google.com' port=443)
07:02:42.128 - httpx.dispatch.connection_pool - new_connection connection=HTTPConnection(origin=Origin(scheme='https' host='google.com' port=443))
07:02:42.133 - httpx.dispatch.connection - start_connect host='google.com' port=443 timeout=TimeoutConfig(timeout=5.0)
07:02:42.195 - httpx.dispatch.connection - connected http_version='HTTP/1.1'
07:02:42.195 - httpx.dispatch.http11 - send_headers method='GET' target='/' headers=Headers({'host': 'google.com', 'user-agent': 'python-httpx/0.7.1', 'accept': '*/*', 'accept-encoding': 'gzip, deflate, br', 'connection': 'keep-alive'})
07:02:42.195 - httpx.dispatch.http11 - receive_event event=NEED_DATA
07:02:42.239 - httpx.dispatch.http11 - receive_event event=Response(status_code=301, headers=[(b'location', b'https://www.google.com/'), (b'content-type', b'text/html; charset=UTF-8'), (b'date', b'Tue, 27 Aug 2019 12:02:42 GMT'), (b'expires', b'Thu, 26 Sep 2019 12:02:42 GMT'), (b'cache-control', b'public, max-age=2592000'), (b'server', b'gws'), (b'content-length', b'220'), (b'x-xss-protection', b'0'), (b'x-frame-options', b'SAMEORIGIN'), (b'alt-svc', b'quic=":443"; ma=2592000; v="46,43,39"')], http_version=b'1.1', reason=b'Moved Permanently')
07:02:42.241 - httpx.dispatch.http11 - response_closed our_state=DONE their_state=SEND_BODY
07:02:42.242 - httpx.dispatch.http11 - send_event event=ConnectionClosed()
07:02:42.242 - httpx.dispatch.connection_pool - release_connection connection=HTTPConnection(origin=Origin(scheme='https' host='google.com' port=443))
07:02:42.242 - httpx.dispatch.connection_pool - acquire_connection origin=Origin(scheme='https' host='www.google.com' port=443)
07:02:42.243 - httpx.dispatch.connection_pool - new_connection connection=HTTPConnection(origin=Origin(scheme='https' host='www.google.com' port=443))
07:02:42.249 - httpx.dispatch.connection - start_connect host='www.google.com' port=443 timeout=TimeoutConfig(timeout=5.0)
07:02:42.309 - httpx.dispatch.connection - connected http_version='HTTP/1.1'
07:02:42.310 - httpx.dispatch.http11 - send_headers method='GET' target='/' headers=Headers({'host': 'www.google.com', 'user-agent': 'python-httpx/0.7.1', 'accept': '*/*', 'accept-encoding': 'gzip, deflate, br', 'connection': 'keep-alive'})
07:02:42.311 - httpx.dispatch.http11 - receive_event event=NEED_DATA
07:02:42.381 - httpx.dispatch.http11 - receive_event event=Response(status_code=200, headers=[(b'date', b'Tue, 27 Aug 2019 12:02:42 GMT'), (b'expires', b'-1'), (b'cache-control', b'private, max-age=0'), (b'content-type', b'text/html; charset=ISO-8859-1'), (b'p3p', b'CP="This is not a P3P policy! See g.co/p3phelp for more info."'), (b'content-encoding', b'gzip'), (b'server', b'gws'), (b'x-xss-protection', b'0'), (b'x-frame-options', b'SAMEORIGIN'), (b'set-cookie', b'1P_JAR=2019-08-27-12; expires=Thu, 26-Sep-2019 12:02:42 GMT; path=/; domain=.google.com; SameSite=none'), (b'set-cookie', b'NID=188=Gp8DK6pOzIS9u9wQ_WWtdgqgIYonZLumM5T_UnZ1GrYTwI_c6SJKlX2Ob8RTQMRTUpzinmnoCy5m0kA0gP6ISENfG0LIZ3-ZVBovXWA5kT_R_NubidkP5_haPb-qDGwTG_qrlLBA-kLsIpZNWKpD6t3_E2uOpJFC8jZ2m5I-iJ4; expires=Wed, 26-Feb-2020 12:02:42 GMT; path=/; domain=.google.com; HttpOnly'), (b'alt-svc', b'quic=":443"; ma=2592000; v="46,43,39"'), (b'transfer-encoding', b'chunked')], http_version=b'1.1', reason=b'OK')
07:02:42.383 - httpx.dispatch.http11 - receive_event event=Data(<1 bytes>)
07:02:42.384 - httpx.dispatch.http11 - receive_event event=Data(<1 bytes>)
07:02:42.384 - httpx.dispatch.http11 - receive_event event=Data(<1 bytes>)
07:02:42.385 - httpx.dispatch.http11 - receive_event event=Data(<1 bytes>)
07:02:42.385 - httpx.dispatch.http11 - receive_event event=Data(<1 bytes>)
07:02:42.386 - httpx.dispatch.http11 - receive_event event=Data(<1 bytes>)
07:02:42.387 - httpx.dispatch.http11 - receive_event event=Data(<1 bytes>)
07:02:42.387 - httpx.dispatch.http11 - receive_event event=Data(<1 bytes>)
07:02:42.387 - httpx.dispatch.http11 - receive_event event=Data(<1 bytes>)
07:02:42.388 - httpx.dispatch.http11 - receive_event event=Data(<1 bytes>)
07:02:42.388 - httpx.dispatch.http11 - receive_event event=Data(<1 bytes>)
07:02:42.389 - httpx.dispatch.http11 - receive_event event=Data(<1 bytes>)
07:02:42.389 - httpx.dispatch.http11 - receive_event event=Data(<1 bytes>)
07:02:42.390 - httpx.dispatch.http11 - receive_event event=Data(<1 bytes>)
07:02:42.390 - httpx.dispatch.http11 - receive_event event=Data(<1 bytes>)
07:02:42.391 - httpx.dispatch.http11 - receive_event event=Data(<1 bytes>)
07:02:42.391 - httpx.dispatch.http11 - receive_event event=Data(<2581 bytes>)
07:02:42.392 - httpx.dispatch.http11 - receive_event event=NEED_DATA
07:02:42.392 - httpx.dispatch.http11 - receive_event event=Data(<2439 bytes>)
07:02:42.393 - httpx.dispatch.http11 - receive_event event=EndOfMessage(headers=[])
07:02:42.393 - httpx.dispatch.http11 - response_closed our_state=DONE their_state=DONE
07:02:42.393 - httpx.dispatch.connection_pool - release_connection connection=HTTPConnection(origin=Origin(scheme='https' host='www.google.com' port=443))

HTTP/2

07:04:41.083 - httpx.dispatch.connection_pool - acquire_connection origin=Origin(scheme='https' host='google.com' port=443)
07:04:41.083 - httpx.dispatch.connection_pool - new_connection connection=HTTPConnection(origin=Origin(scheme='https' host='google.com' port=443))
07:04:41.088 - httpx.dispatch.connection - start_connect host='google.com' port=443 timeout=TimeoutConfig(timeout=5.0)
07:04:41.166 - httpx.dispatch.connection - connected http_version='HTTP/2'
07:04:41.166 - httpx.dispatch.http2 - send_headers stream_id=1 method='GET' target='/' headers=[(b':method', b'GET'), (b':authority', b'google.com'), (b':scheme', b'https'), (b':path', b'/'), (b'user-agent', b'python-httpx/0.7.1'), (b'accept', b'*/*'), (b'accept-encoding', b'gzip, deflate, br'), (b'connection', b'keep-alive')]
07:04:41.167 - httpx.dispatch.http2 - end_stream stream_id=1
07:04:41.191 - httpx.dispatch.http2 - receive_event stream_id=0 event=<RemoteSettingsChanged changed_settings:{ChangedSetting(setting=SettingCodes.MAX_CONCURRENT_STREAMS, original_value=None, new_value=100), ChangedSetting(setting=SettingCodes.INITIAL_WINDOW_SIZE, original_value=65535, new_value=1048576), ChangedSetting(setting=SettingCodes.MAX_HEADER_LIST_SIZE, original_value=None, new_value=16384)}>
07:04:41.192 - httpx.dispatch.http2 - receive_event stream_id=0 event=<WindowUpdated stream_id:0, delta:983041>
07:04:41.193 - httpx.dispatch.http2 - receive_event stream_id=0 event=<SettingsAcknowledged changed_settings:{}>
07:04:41.213 - httpx.dispatch.http2 - receive_event stream_id=1 event=<ResponseReceived stream_id:1, headers:[(b':status', b'301'), (b'location', b'https://www.google.com/'), (b'content-type', b'text/html; charset=UTF-8'), (b'date', b'Tue, 27 Aug 2019 12:04:41 GMT'), (b'expires', b'Thu, 26 Sep 2019 12:04:41 GMT'), (b'cache-control', b'public, max-age=2592000'), (b'server', b'gws'), (b'content-length', b'220'), (b'x-xss-protection', b'0'), (b'x-frame-options', b'SAMEORIGIN'), (b'alt-svc', b'quic=":443"; ma=2592000; v="46,43,39"')]>
07:04:41.213 - httpx.dispatch.http2 - receive_event stream_id=1 event=<DataReceived stream_id:1, flow_controlled_length:220, data:3c48544d4c3e3c484541443e3c6d657461206874>
07:04:41.213 - httpx.dispatch.http2 - receive_event stream_id=1 event=<DataReceived stream_id:1, flow_controlled_length:0, data:>
07:04:41.214 - httpx.dispatch.http2 - receive_event stream_id=1 event=<StreamEnded stream_id:1>
07:04:41.214 - httpx.dispatch.http2 - receive_event stream_id=0 event=<PingReceived ping_data:0000000000000000>
07:04:41.217 - httpx.dispatch.connection_pool - release_connection connection=HTTPConnection(origin=Origin(scheme='https' host='google.com' port=443))
07:04:41.217 - httpx.dispatch.connection_pool - acquire_connection origin=Origin(scheme='https' host='www.google.com' port=443)
07:04:41.218 - httpx.dispatch.connection_pool - new_connection connection=HTTPConnection(origin=Origin(scheme='https' host='www.google.com' port=443))
07:04:41.238 - httpx.dispatch.connection - start_connect host='www.google.com' port=443 timeout=TimeoutConfig(timeout=5.0)
07:04:41.314 - httpx.dispatch.connection - connected http_version='HTTP/2'
07:04:41.315 - httpx.dispatch.http2 - send_headers stream_id=1 method='GET' target='/' headers=[(b':method', b'GET'), (b':authority', b'www.google.com'), (b':scheme', b'https'), (b':path', b'/'), (b'user-agent', b'python-httpx/0.7.1'), (b'accept', b'*/*'), (b'accept-encoding', b'gzip, deflate, br'), (b'connection', b'keep-alive')]
07:04:41.317 - httpx.dispatch.http2 - end_stream stream_id=1
07:04:41.338 - httpx.dispatch.http2 - receive_event stream_id=0 event=<RemoteSettingsChanged changed_settings:{ChangedSetting(setting=SettingCodes.MAX_CONCURRENT_STREAMS, original_value=None, new_value=100), ChangedSetting(setting=SettingCodes.INITIAL_WINDOW_SIZE, original_value=65535, new_value=1048576), ChangedSetting(setting=SettingCodes.MAX_HEADER_LIST_SIZE, original_value=None, new_value=16384)}>
07:04:41.339 - httpx.dispatch.http2 - receive_event stream_id=0 event=<WindowUpdated stream_id:0, delta:983041>
07:04:41.339 - httpx.dispatch.http2 - receive_event stream_id=0 event=<SettingsAcknowledged changed_settings:{}>
07:04:41.392 - httpx.dispatch.http2 - receive_event stream_id=1 event=<ResponseReceived stream_id:1, headers:[(b':status', b'200'), (b'date', b'Tue, 27 Aug 2019 12:04:41 GMT'), (b'expires', b'-1'), (b'cache-control', b'private, max-age=0'), (b'content-type', b'text/html; charset=ISO-8859-1'), (b'p3p', b'CP="This is not a P3P policy! See g.co/p3phelp for more info."'), (b'content-encoding', b'gzip'), (b'server', b'gws'), (b'content-length', b'5048'), (b'x-xss-protection', b'0'), (b'x-frame-options', b'SAMEORIGIN'), (b'set-cookie', b'1P_JAR=2019-08-27-12; expires=Thu, 26-Sep-2019 12:04:41 GMT; path=/; domain=.google.com; SameSite=none'), (b'set-cookie', b'NID=188=prjg5iYy-bcIfsom2sUIFPTHtxxpHicUGQvEJwW2Zs49Sswu69FtIq_A35GRTus9xTLmFUJ66wgENfVEnePNlrx09nadujyCHzyMxS24ucqSkVee6YvAJJHLA6ih-MQMGw-HckU_6hVw4nUOlqIWiN5yqogYs2cG7b96qF4oFTY; expires=Wed, 26-Feb-2020 12:04:41 GMT; path=/; domain=.google.com; HttpOnly'), (b'alt-svc', b'quic=":443"; ma=2592000; v="46,43,39"')]>
07:04:41.395 - httpx.dispatch.http2 - receive_event stream_id=1 event=<DataReceived stream_id:1, flow_controlled_length:5157, data:1f8b08000000000002ffc55ae976dbb6b6fedfa7>
07:04:41.395 - httpx.dispatch.http2 - receive_event stream_id=1 event=<DataReceived stream_id:1, flow_controlled_length:196, data:>
07:04:41.395 - httpx.dispatch.http2 - receive_event stream_id=1 event=<StreamEnded stream_id:1>
07:04:41.395 - httpx.dispatch.http2 - receive_event stream_id=0 event=<PingReceived ping_data:0000000000000000>
07:04:41.397 - httpx.dispatch.connection_pool - release_connection connection=HTTPConnection(origin=Origin(scheme='https' host='www.google.com' port=443))

httpx/utils.py

florimondmanca

👍👏

sethmlarson · 2019-08-27T16:43:26Z

Thanks for the review @florimondmanca and @tomchristie!
